Any gaps in the list of drawings will be marked as either MISSING or DELETED. Missing drawings are simply ones I don't have, whereas deleted drawings were removed from the set by the drafting company or contractor. This latter group means that a drawing might exist, but was not part of the as-built set of final plans, or was later modified.

The Tunnels blueprints are further broken down into the following sub-groups as shown in the following table and can be directly selected below to jump to those groups of drawings.

There are currently 33 drawings in the Tunnels section.

NOTE: Drawing descriptions may be truncated and/or abbreviated to remove redundant text and maintain brevity in limited cell space.

Drawing Types

The following table provides quick selection of the types of drawings in the Tunnels section. You can choose a category below, or scroll down to see everything in order.

At this time, there are only drawings available in the Architechtural, Details, Electrical, Plumbing and Structural sub-categores for the Tunnels category drawings. I hope more will be located and added in the future.

Sub-group Description
A Architectural
C Civil (NONE AVAILABLE)
CP Composite (NONE AVAILABLE)
D Details
E Electrical
M Mechanical (NONE AVAILABLE)
P Plumbing
S Structural

Tunnels - Architechtural drawings (8)

Drawing Number Description
86-A-1 PLANS SECTIONS
86-A-2 BLAST LOCK NO. 1. PLAN & SECTIONS
86-A-3 BLAST LOCK NO. 2. PLAN & SECTIONS
86-A-4 PORTAL & TUNNEL JUNCTION #10 PLAN & SECTION
86-A-5 PORTAL PLANS & SECTION
86-A-6 PORTAL SECTIONS
86-A-7 PORTAL DETAILS
86-A-8 PORTAL SILO ENTRANCE STRUCTURE SECURITY INSTALLATION

Tunnels - Civil drawings (0)

Drawing Number Description
-- N/A

Tunnels - Composite drawings (0)

Drawing Number Description
-- N/A

Tunnels - Details drawings (25)

Drawing Number Description
86-D-1 BLAST DOOR ASS'Y. & DETAILS
86-D-2 BLAST DOOR DETAILS
86-D-3 BLAST DOOR DETAILS
86-D-4 8' X 10' PORTAL BLAST DOOR

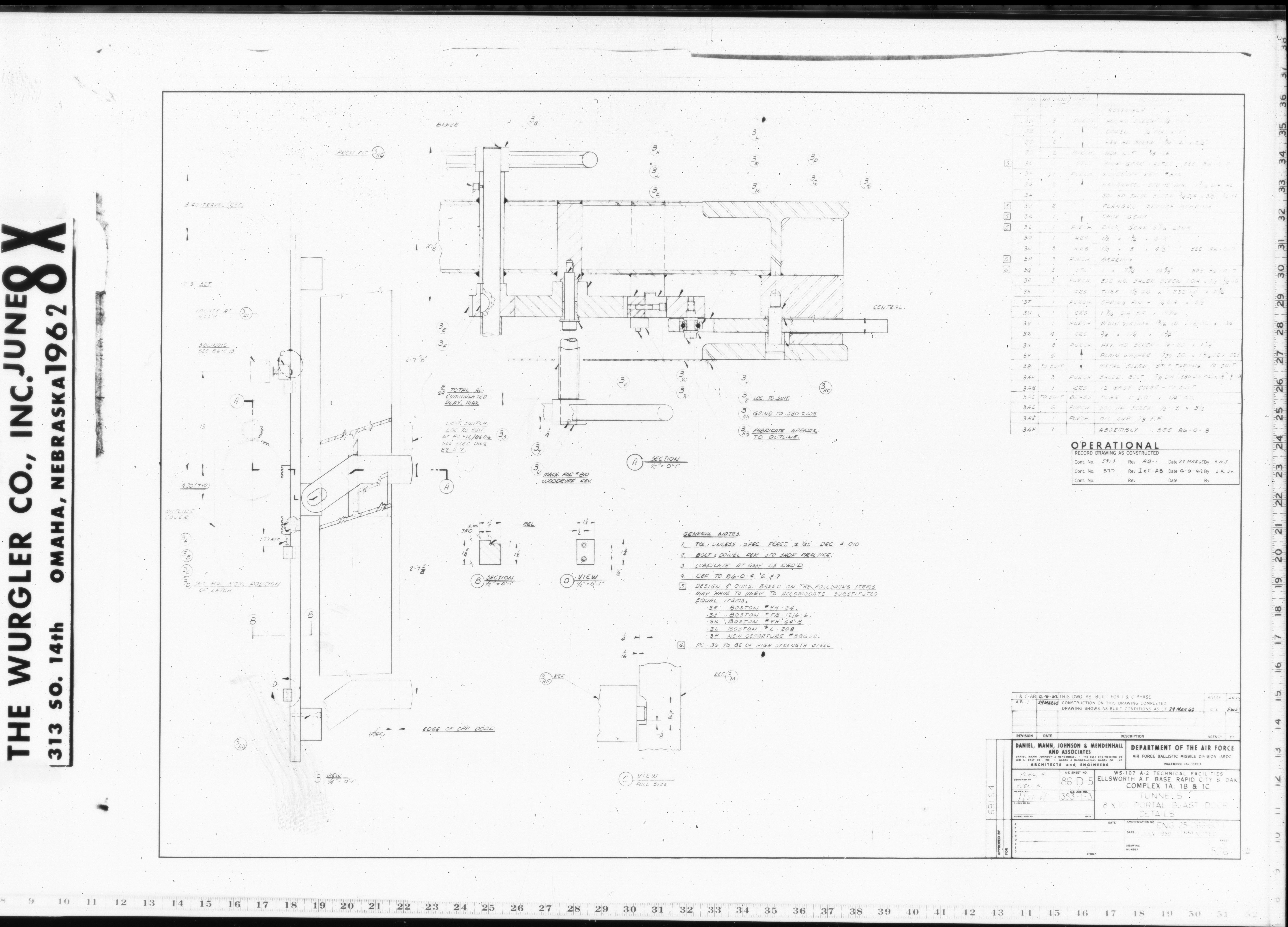

86-D-5 8' X 10' PORTAL BLAST DOOR DETAILS
86-D-6 8' X 10' PORTAL BLAST DOOR DETAILS
86-D-7 8' X 10' PORTAL BLAST DOOR DETAILS
86-D-8 PORTAL REVOLVING BLAST DOOR
86-D-9 PORTAL REVOLVING BLAST DOOR DETAILS
86-D-10 MISSING *
86-D-11 PORTAL REVOLVING BLAST DOOR ASSEMBLY
86-D-12 BLAST LOCK ESCAPE HATCH INSTALLATION
86-D-13 BLAST LOCK ESCAPE HATCH ASS'Y. & DET'S.
86-D-14 TYPE "C" TUNNEL FIRE WALL FRAMING
86-D-15 TYPE "C" TUNNEL DUCT FIRE DAMPER
86-D-16 TUNNEL JUNCTION NO. 12 MOTOR CONT. CENT. SHOCK MNT.
86-D-17 AIR INTAKE STRUCTURE 3' X 4' BLAST DOOR
86-D-18 AIR INTAKE STRUCTURE 3' X 4' BLAST DOOR DETAILS
86-D-19 MISSING *
86-D-20 MISSING *
86-D-21 MISSING *
86-D-22 PORTAL INSTRUMENT TUBE
86-D-23 PORTAL INSTRUMENT TUBE DETAILS

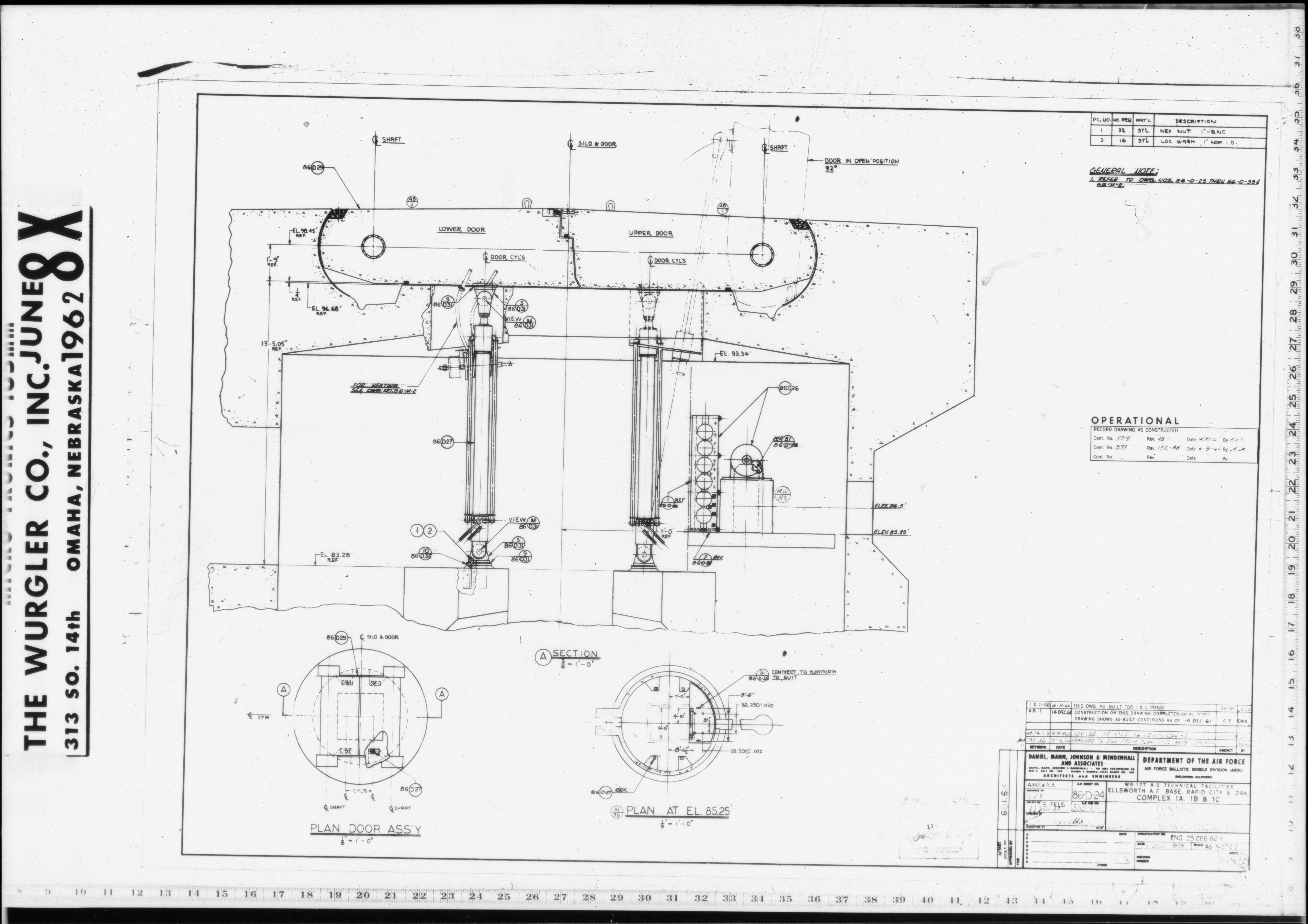

86-D-24 PORTAL DOOR OPENING MECHANISM - GENERAL ASS'Y.
86-D-25 PORTAL HYDRAULIC SCHEMATIC
86-D-26 PORTAL DOOR OPENING MECHANISM HYDRAULIC UNIT OUTLINES

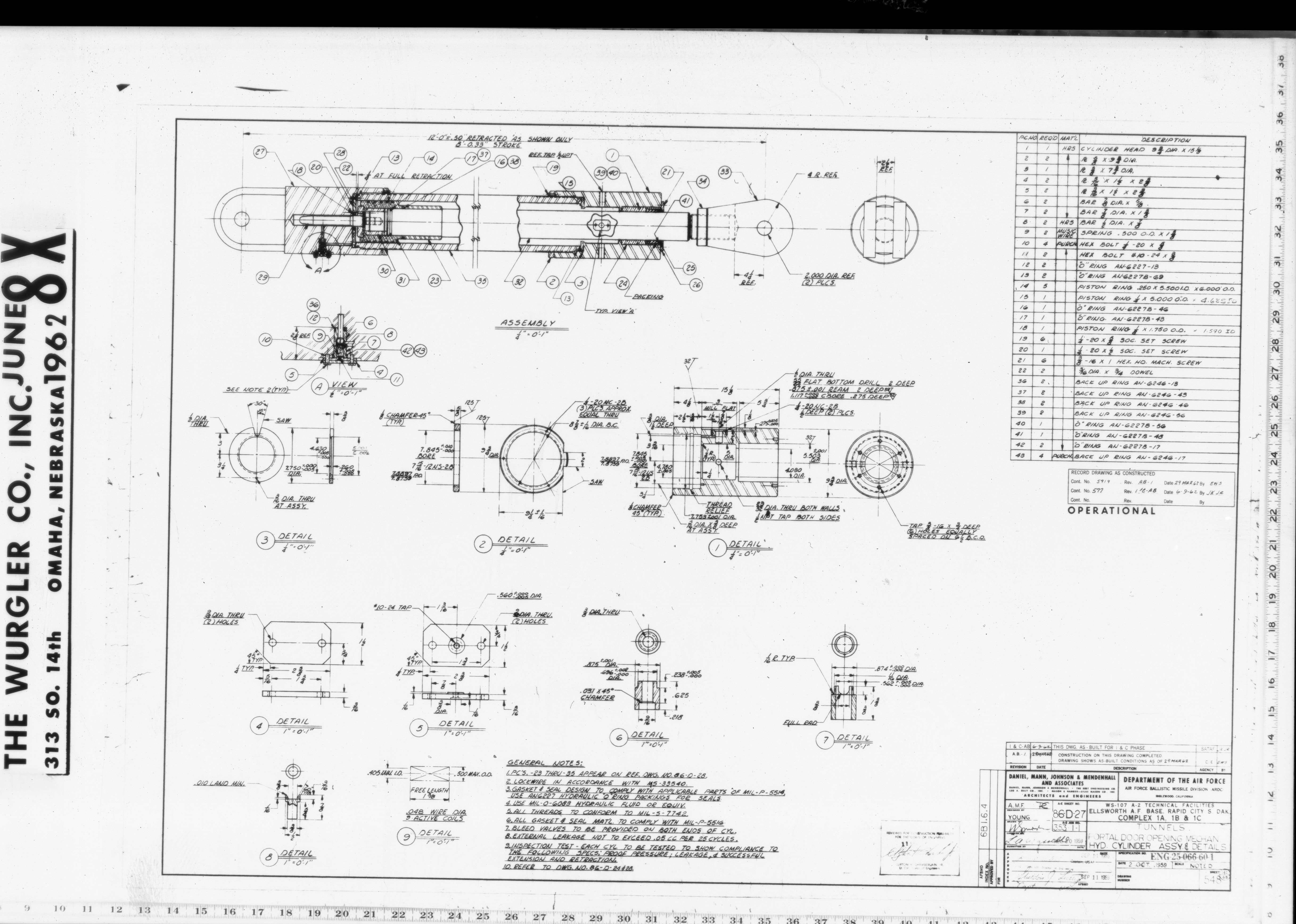

86-D-27 PORTAL DOOR OPENING MECHAN. HYD. CYLINDER ASS'Y. & DETAILS
86-D-28 through 86-D-33 5 MISSING DRAWINGS *
86-D-34 PIPE SUPPORT DETAILS POWERHOUSE INTAKE TUNNEL
86-D-35 PIPE SUPPORT DETAILS POWERHOUSE EXHAUST TUNNEL

Tunnels - Electrical drawings (2)

Drawing Number Description
86-E-1 through 86-E-15 15 MISSING DRAWINGS *
86-E-16 PIPE SUPPORT DETAILS POWERHOUSE EXHAUST TUNNEL
86-E-17 PIPE SUPPORT DETAILS POWERHOUSE EXHAUST TUNNEL

Tunnels - Mechanical drawings (0)

Drawing Number Description
-- N/A

Tunnels - Plumbing drawings (20)

Drawing Number Description
86-P-1 through 86-P-38 38 MISSING DRAWINGS *
86-P-39 UTILITIES PIPING WATER STORAGE TANKS T-801 & T-802
86-P-40 UTILITIES PIPING DETAILS PLAN & SECTIONS
86-P-41 UTILITIES PIPING TYPICAL SECTIONS
86-P-42 MISSING *
86-P-43 MISSING *
86-P-44 PLS FUEL PIPING PLAN SHEET #1
86-P-45 PLS FUEL PIPING PLAN SHEET #2
86-P-46 PLS FUEL PIPING TUNNEL JUNCTION #12 - PLAN
86-P-47 PLS FUEL PIPING TUNNEL JUNCTION #12 SECTIONS
86-P-48 PLS FUEL PIPING TYPICAL SECTIONS
86-P-49 UTILITY PIPING SUPPORT DETAILS SHEET #2†
86-P-50 MISSING *

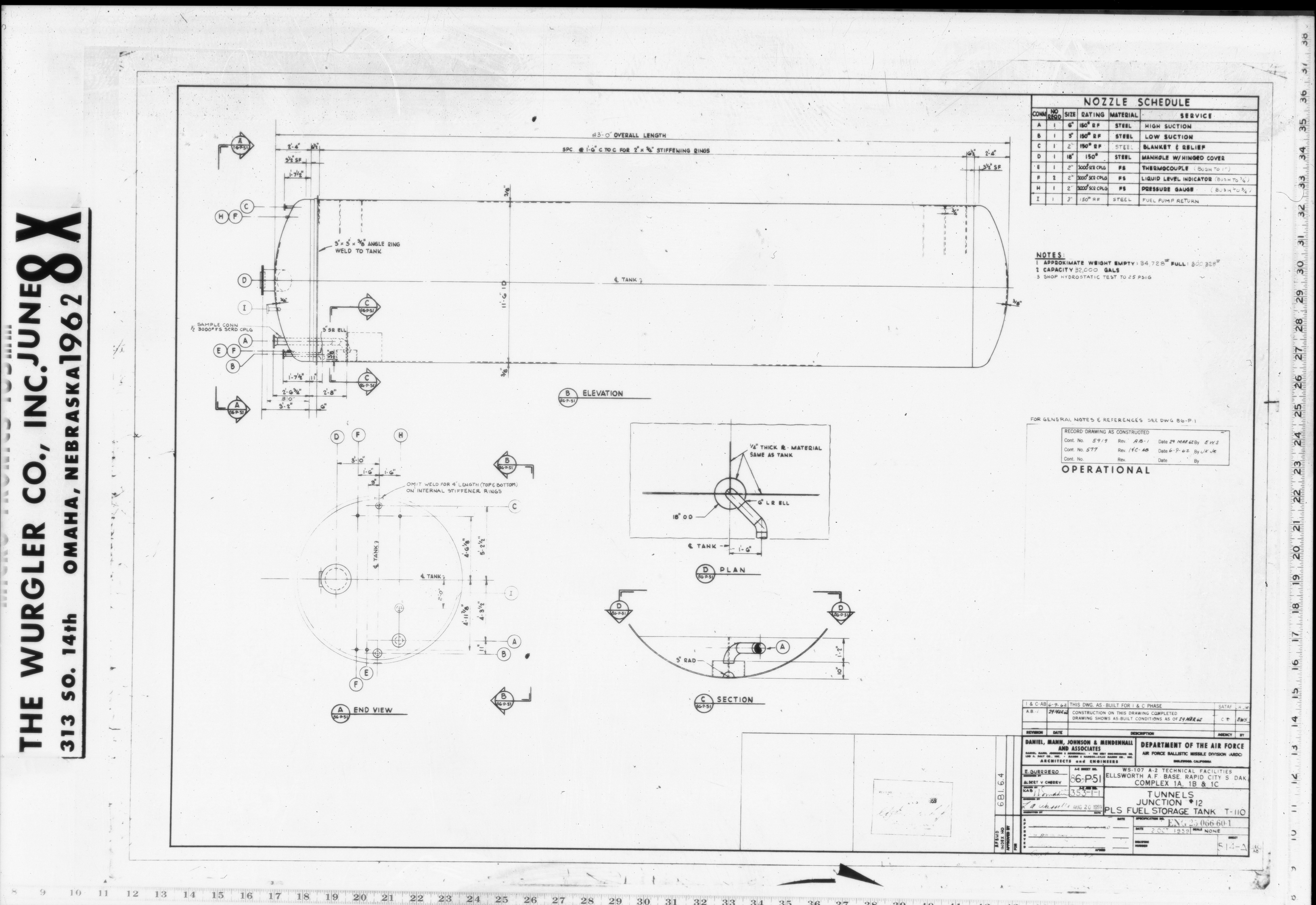

86-P-51 JUNCTION #12 PLS FUEL STORAGE TANK T-110
86-P-52 MISSING *
86-P-53 CO2 FIRE PROTECTION SYSTEM TUNNEL JUNCTION #12 - SECTIONS
86-P-54 through 86-P-60 7 MISSING DRAWINGS *
86-P-61 TUNNEL JUNCTION #12 PLS FUEL PIPE SUPPORTS PLAN
86-P-62 TUNNEL JUNCTION #12 P.L.S. FUEL PIPE SUPPORTS SECTION
86-P-63 TUNNEL JUNCTION #12 PLS FUEL PIPE SUPPORTS SECTIONS
86-P-64 TUNNEL JUNCTION #12 PLS FUEL PIPE SUPPORTS SECTION
86-P-65 PLS FUEL PIPE SUPPORTS DETAILS
86-P-66 TUNNEL JUNCTION #12 PLS FUEL PIPE SUPPORTS DETAILS
86-P-67 TUNNEL JUNCTION #12 PLS FUEL PIPE SUPPORTS DETAILS
86-P-68 TUNNEL JUNCTION #12 PLS FUEL PIPE SUPPORTS DETAILS
86-P-69 TUNNEL JUNCTION #12 PLS FUEL PIPE SUPPORTS DETAILS

Tunnels - Structural drawings (46)

Drawing Number Description
86-S-1 LAYOUT PLAN, SECTIONS & DETAILS
86-S-2 JUNCTIONS NO.S 1, 2, 4, 5, 7, 9, & 12 PLANS & SECTIONS
86-S-3 STRUCTURAL STEEL FLOOR DETAILS
86-S-4 MISSING *
86-S-5 JUNCTION NO. 8 PLANS
86-S-6 ANTENNA TERMINAL JUNCTION PLAN & SECTIONS
86-S-7 MISSING *
86-S-8 MISSING *
86-S-9 TYPE "D" PLAN & SECTIONS
86-S-10 TYPE "D" PLAN & DETAILS
86-S-11 TYPE "A" TRAY SUPPORTS - PLAN & SECT'S.
86-S-12 BLAST LOCK NO.1 CONC. FLOOR - PLAN & SECTION
86-S-13 BLAST LOCK NO.1 CONC. ROOF - PLAN & SECTION
86-S-14 BLAST LOCK NO.1 CONC. ELEVS, SECTS. & DETS.
86-S-15 BLAST LOCK NO.1 STRUCT. STL. FLR. - PLAN & SECT.
86-S-16 BLAST LOCK NO.1 STRUCT. STL. SECTS. & DETS.
86-S-17 BLAST LOCK NO.1 STRUCT. STL. PLANS, SECTS. & DETS.
86-S-18 BLAST LOCK NO.2 CONC. FLOOR PLAN & SECT.

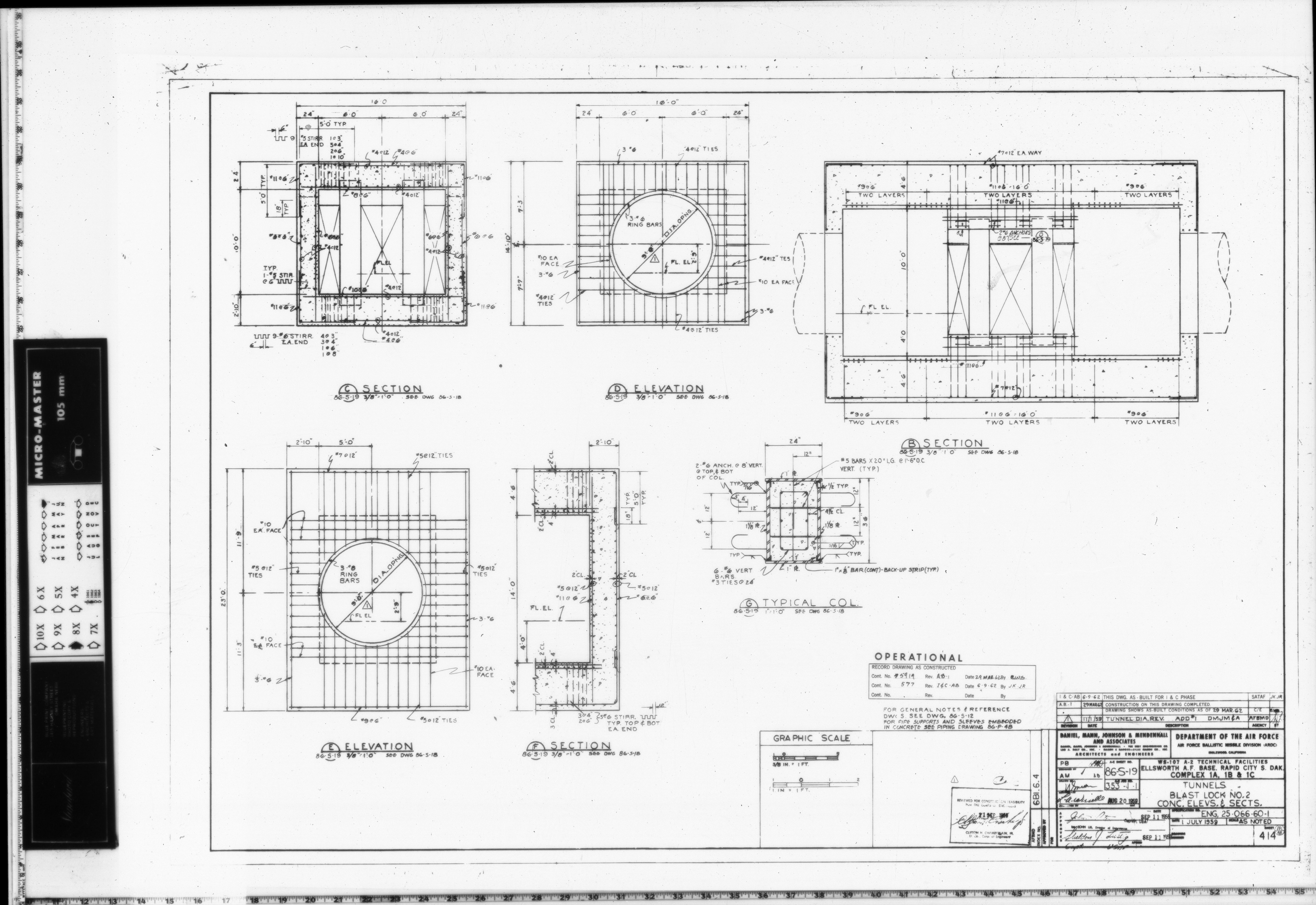

86-S-19 BLAST LOCK NO.2 CONC. ELEVS, & SECTS.
86-S-20 MISSING *
86-S-21 MISSING *
86-S-22 BLAST LOCK NO.2 STRUCT. S.T.L. - PLANS, SECTS. & DETS.
86-S-23 TUNNEL JUNCTION NO.10 STEEL FLOOR FRAMING PLAN
86-S-24 TUNNEL JUNCTION NO.10 STRUCT. STL. - SECTS. & DETAILS - #1
86-S-25 MISSING *
86-S-26 TYPE "E" STRUCT. STL. - PLAN, ELEV. & SECTS.
86-S-27 MISSING *
86-S-28 JUNCTION NO. 14 PLANS, SECTIONS & DETAILS
86-S-29 JUNCTION. NO.11 STRUCT. STEEL - PLANS & SECTS.
86-S-30 PORTAL SILO PLANS
86-S-31 PORTAL SILO PLANS
86-S-32 PORTAL SILO PLANS SECTIONS & ELEVATIONS
86-S-33 PORTAL SILO SECTIONS
86-S-34 PORTAL SILO PLAN & SECTIONS
86-S-35 MISSING *
86-S-36 PORTAL SILO DOOR PLAN & SECTION
86-S-37 PORTAL SILO DOOR PLAN & SECTION
86-S-38 MISSING *
86-S-39 PORTAL SILO INSTRUMENT MOUNT DETAILS & SECTIONS
86-S-40 PORTAL SILO INTERIOR STRUCTURE - PLANS
86-S-41 PORTAL SILO INTERIOR STRUCTURE SECTIONS
86-S-42 PORTAL SILO INTERIOR STRUCTURE DETAILS
86-S-43 PORTAL SILO INTERIOR STRUCTURE DETAILS
86-S-44 PORTAL SILO INTERIOR STRUCTURE DETAILS
86-S-45 MISSING *
86-S-46 TYPE "D" FLOOR PLAN & SECTIONS
86-S-47 ANTENNA TERMINAL JUNCTION PLAN, ELEVS. SECTS. & DETS.

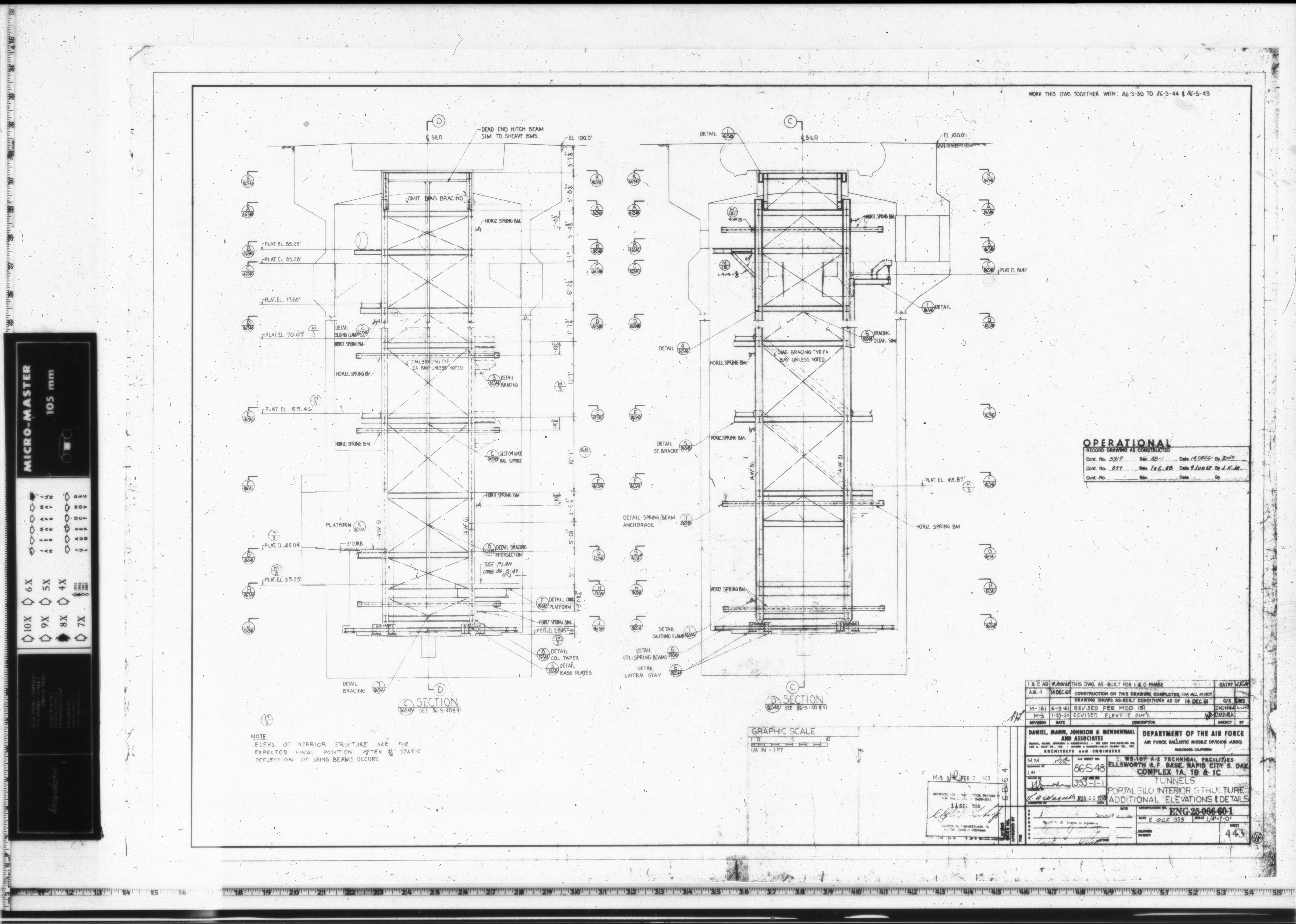

86-S-48 PORTAL SILO INTERIOR STRUCTURE ADDTIONAL ELEVATIONS & DETAILS

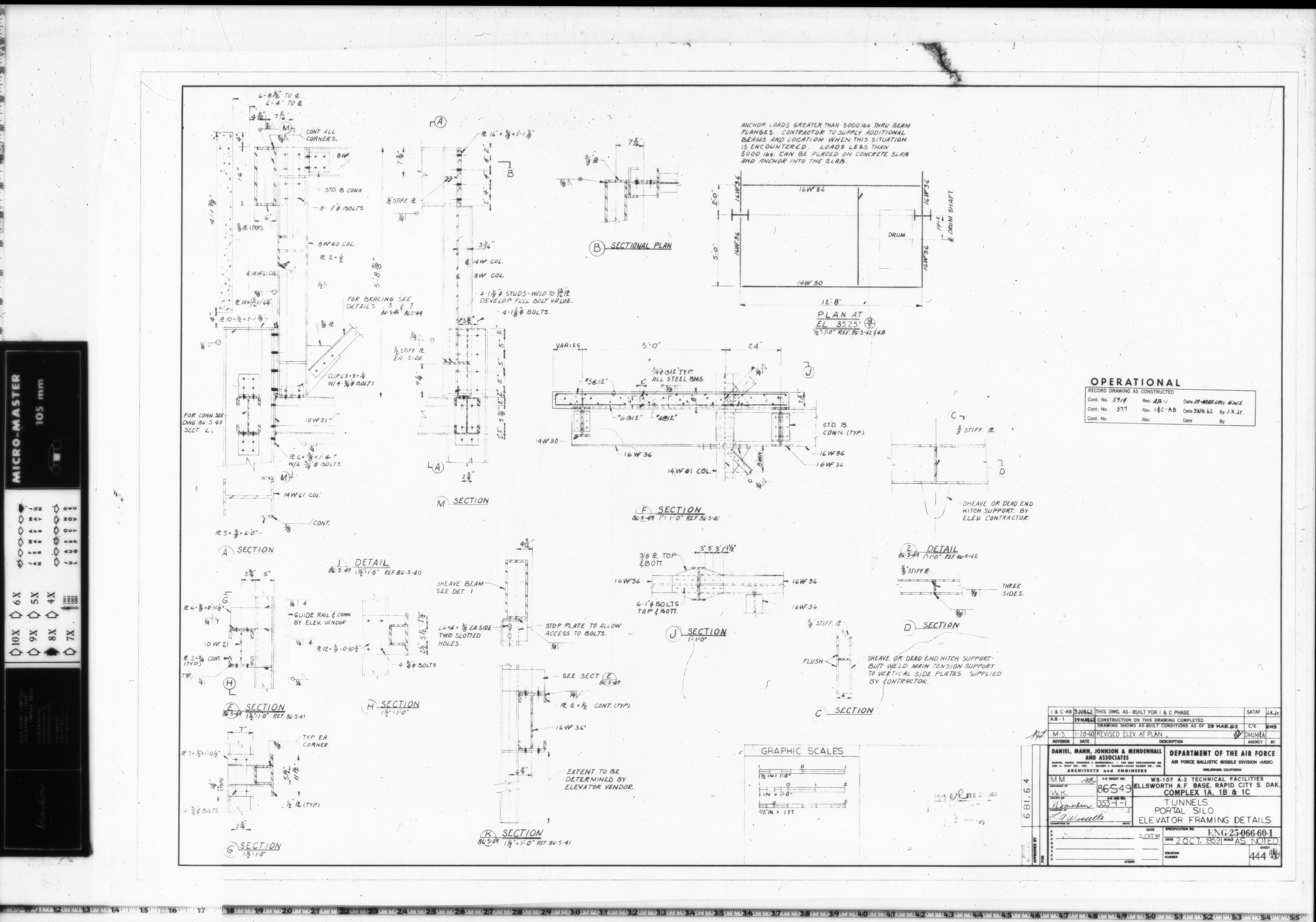

86-S-49 PORTAL SILO ELEVATOR FRAMING DETAILS
86-S-50 JUNCTION NO.12 PLAN & SECTIONS

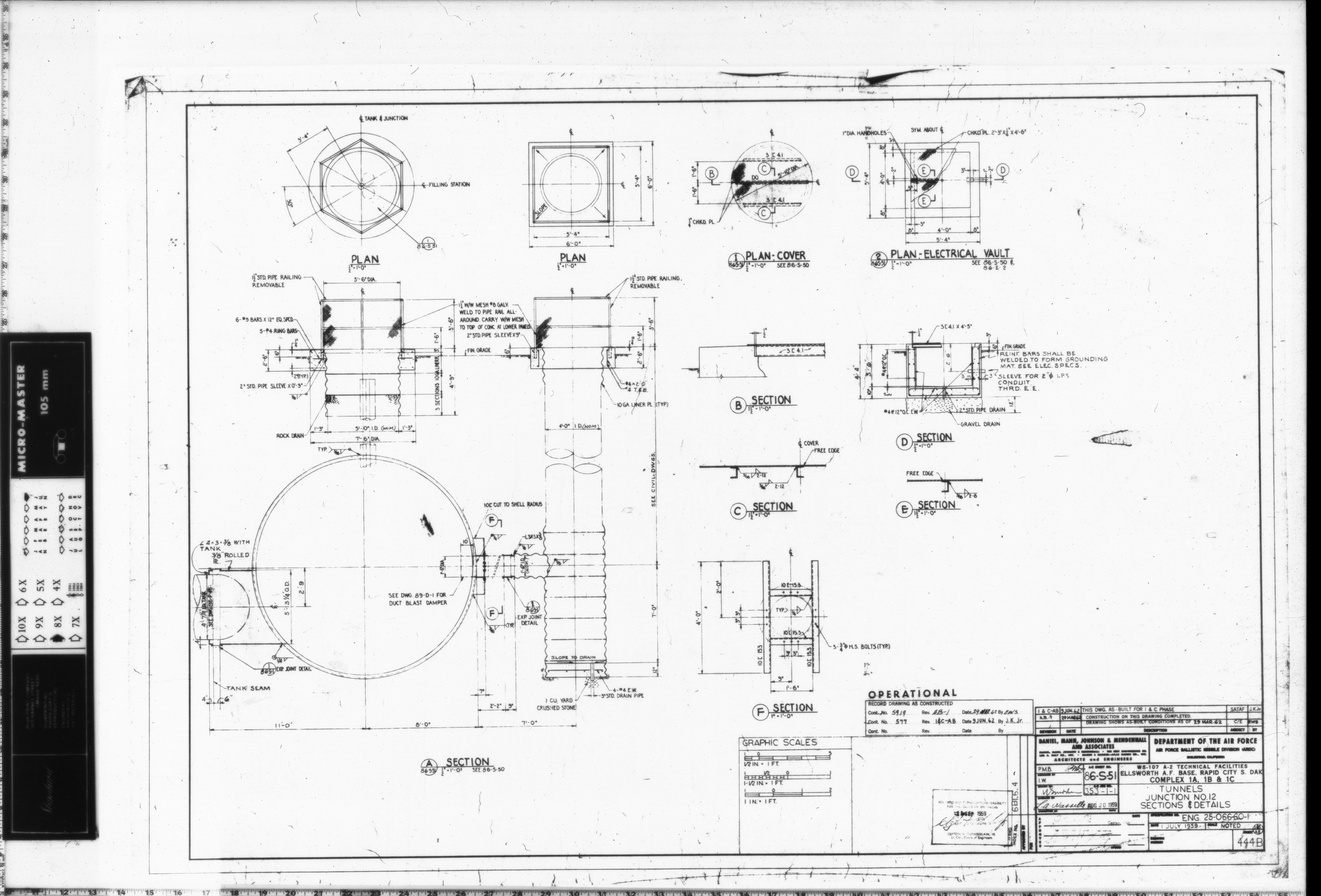

86-S-51 JUNCTION NO.12 SECTIONS & DETAILS
86-S-52 MISSING *
86-S-53 MISSING *
86-S-54 PORTAL SILO ENTRANCE STRUCTURE PLAN & SECTIONS
86-S-55 TYPE A TYP. SUPPORT DETAILS
86-S-56 TYPE A, & B ENTRANCE DETAILS & SECTIONS
86-S-57 TYPE "C" PIPE SUPPORTS - PLAN & SECTIONS
86-S-58 MISSING *
86-S-59 MISSING *
86-S-60 JUNCTION NO.14 FOUNDATION DETAILS
* Drawing is thought to be missing, meaning that it is thought to be in the index, but unavailable. This drawing's existence is only suggested by another drawing with a higher number. E.g., If a drawing such as 92-S-3 exists, it is reasonable to infer that 92-S-1 and 92-S-2 also likely exist. It is possible however, that some drawings which are expected to exist may have been deleted from the drawing index, so there is no certainty that these drawings actually exist, and so these entries should only be considered as placeholders.
† Drawing title is woefully illegible and may not be accurate. Every effort has been made to discern the title's correct text, but some extrapolation, inference and outright guessing was required to arrive at a title for this drawing. In some cases a series of underscore characters ( ___ ) have been used to indicate the prescence of missing text that simply could not be positively identified.
