Any gaps in the list of drawings will be marked as either MISSING or DELETED. Missing drawings are simply ones I don't have, whereas deleted drawings were removed from the set by the drafting company or contractor. This latter group means that a drawing might exist, but was not part of the as-built set of final plans, or was later modified.

The Air Handling blueprints are further broken down into the following sub-groups as shown in the following table and can be directly selected below to jump to those groups of drawings.

There are currently 10 drawings in the Air Handling section.

NOTE: Drawing descriptions may be truncated and/or abbreviated to remove redundant text and maintain brevity in limited cell space.

Drawing Types

The following table provides quick selection of the types of drawings in the Air Handling section. You can choose a category below, or scroll down to see everything in order.

At this time, there are only drawings available in the Details, Mechanical and Structural sub-categores for the Air Handling category drawings. I hope more will be located and added in the future.

Sub-group Description
A Architectural (NONE AVAILABLE)
C Civil (NONE AVAILABLE)
CP Composite (NONE AVAILABLE)
D Details
E Electrical (NONE AVAILABLE)
M Mechanical
P Plumbing/Piping (NONE AVAILABLE)
S Structural

Air Handling - Details drawings (5)

Drawing Number Description

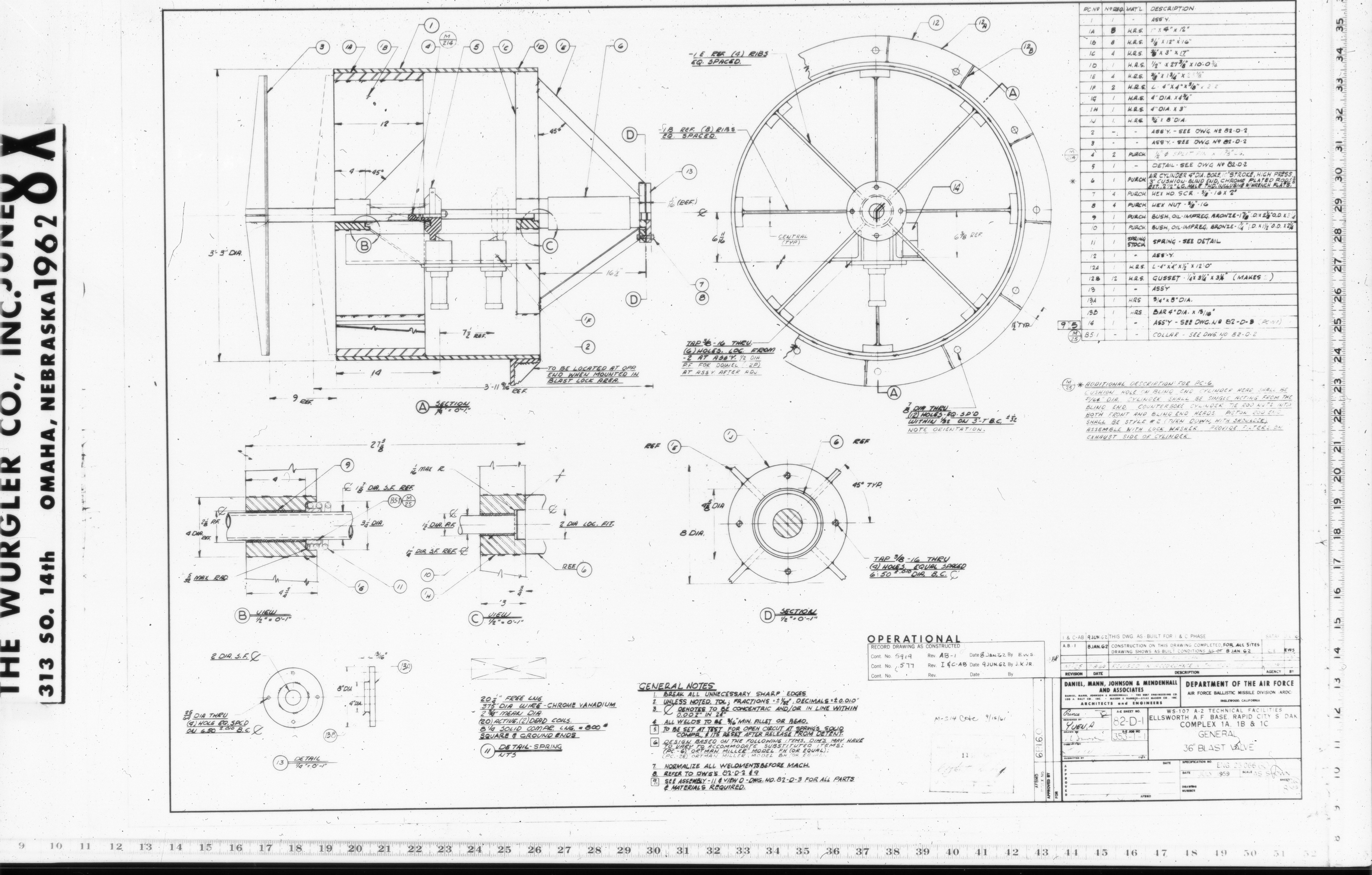

82-D-1 GENERAL 36" BLAST VALVE
82-D-2 MISSING

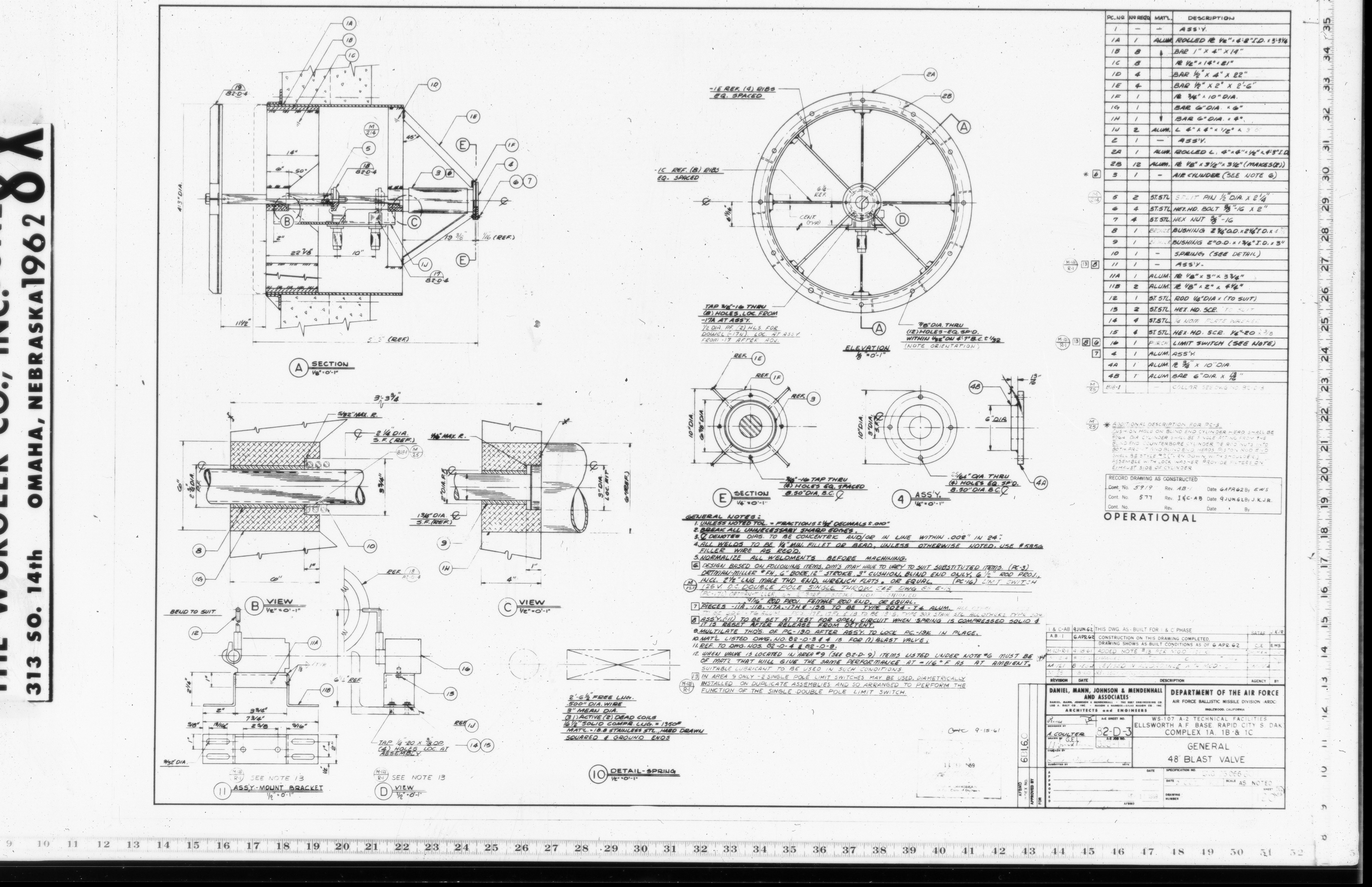

82-D-3 GENERAL 48" BLAST VALVE
82-D-4 MISSING

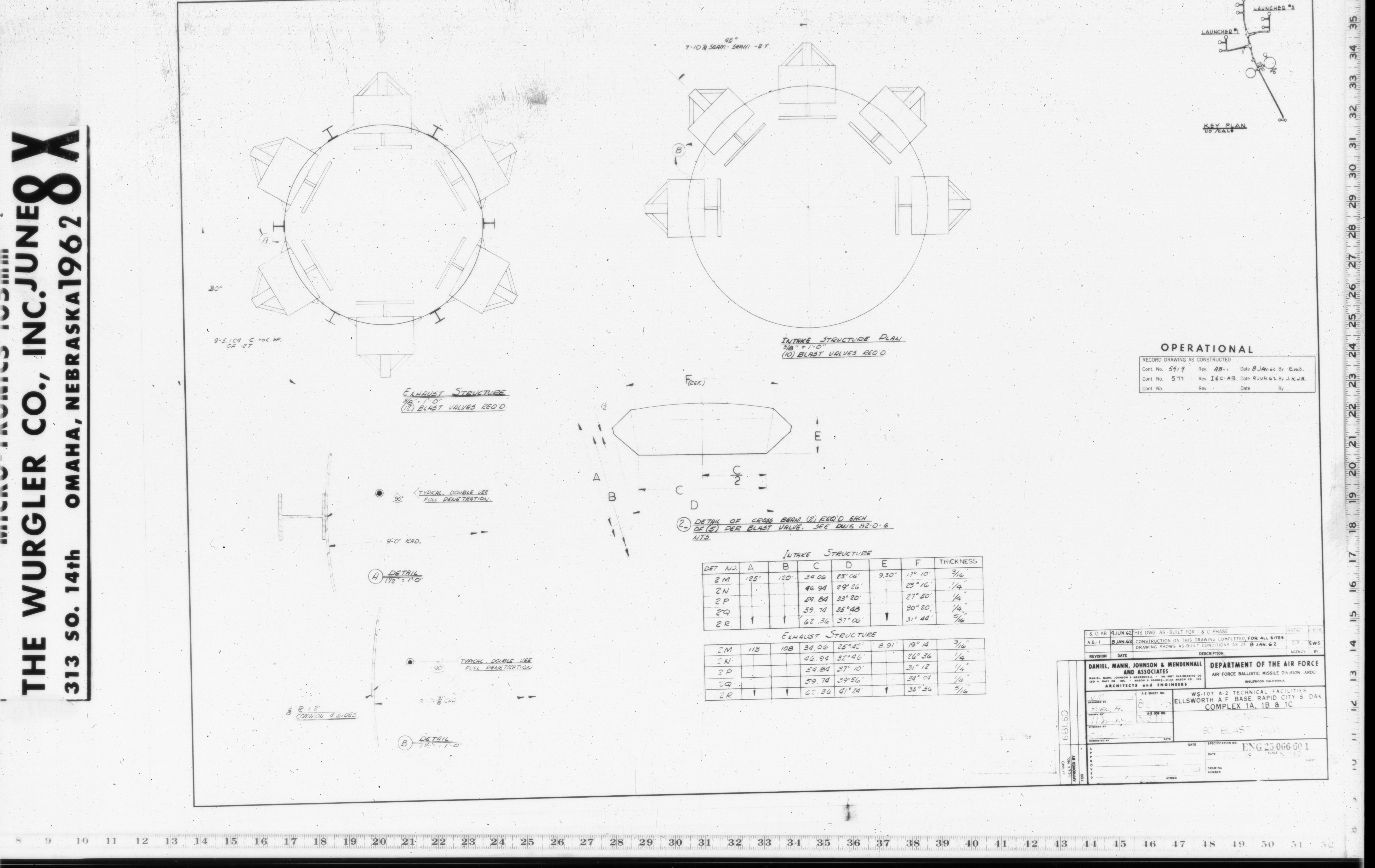

82-D-5 GENERAL 60" BLAST VALVE

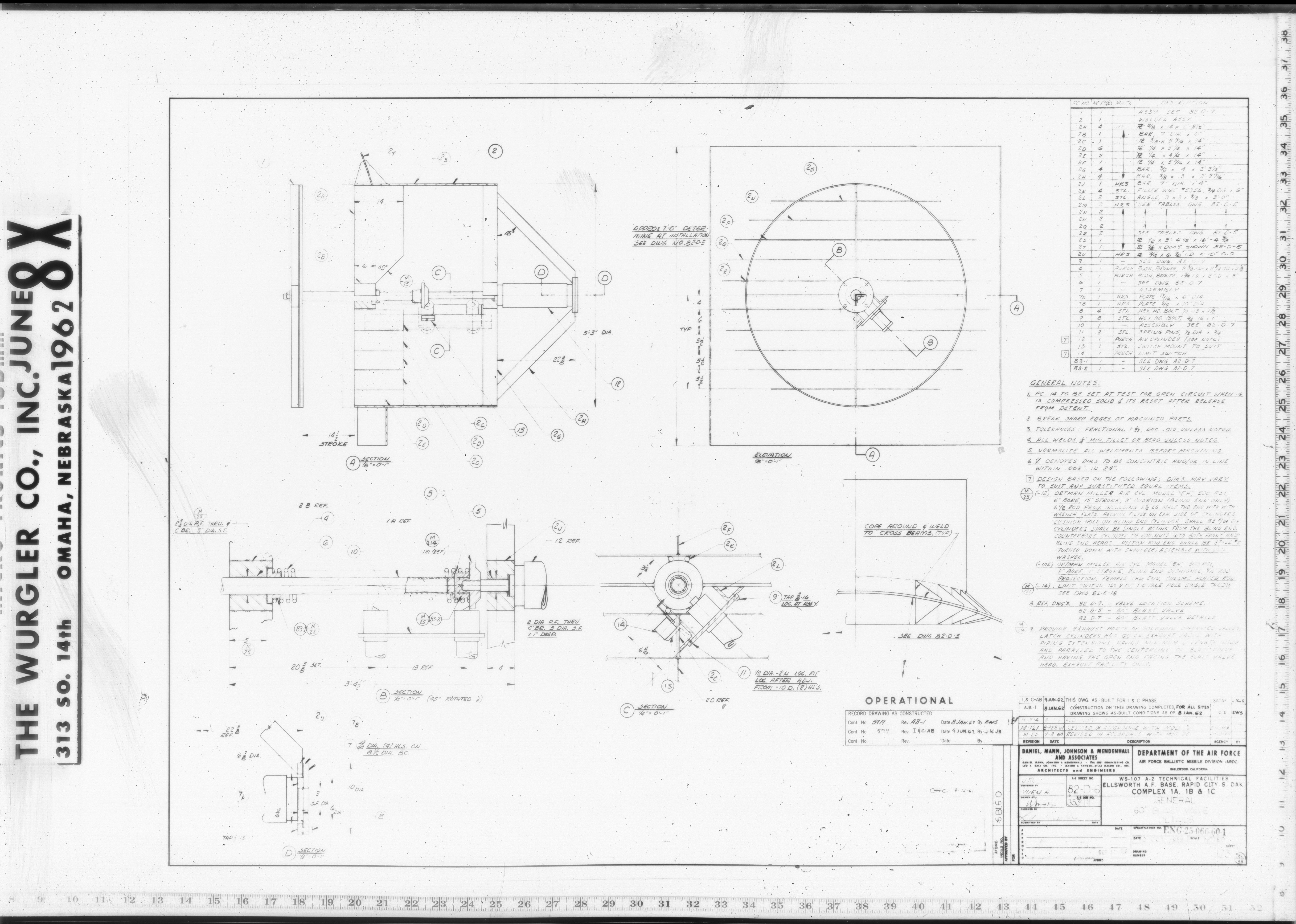

82-D-6 GENERAL 60" BLAST VALVE DETAILS
82-D-7 MISSING
82-D-8 MISSING

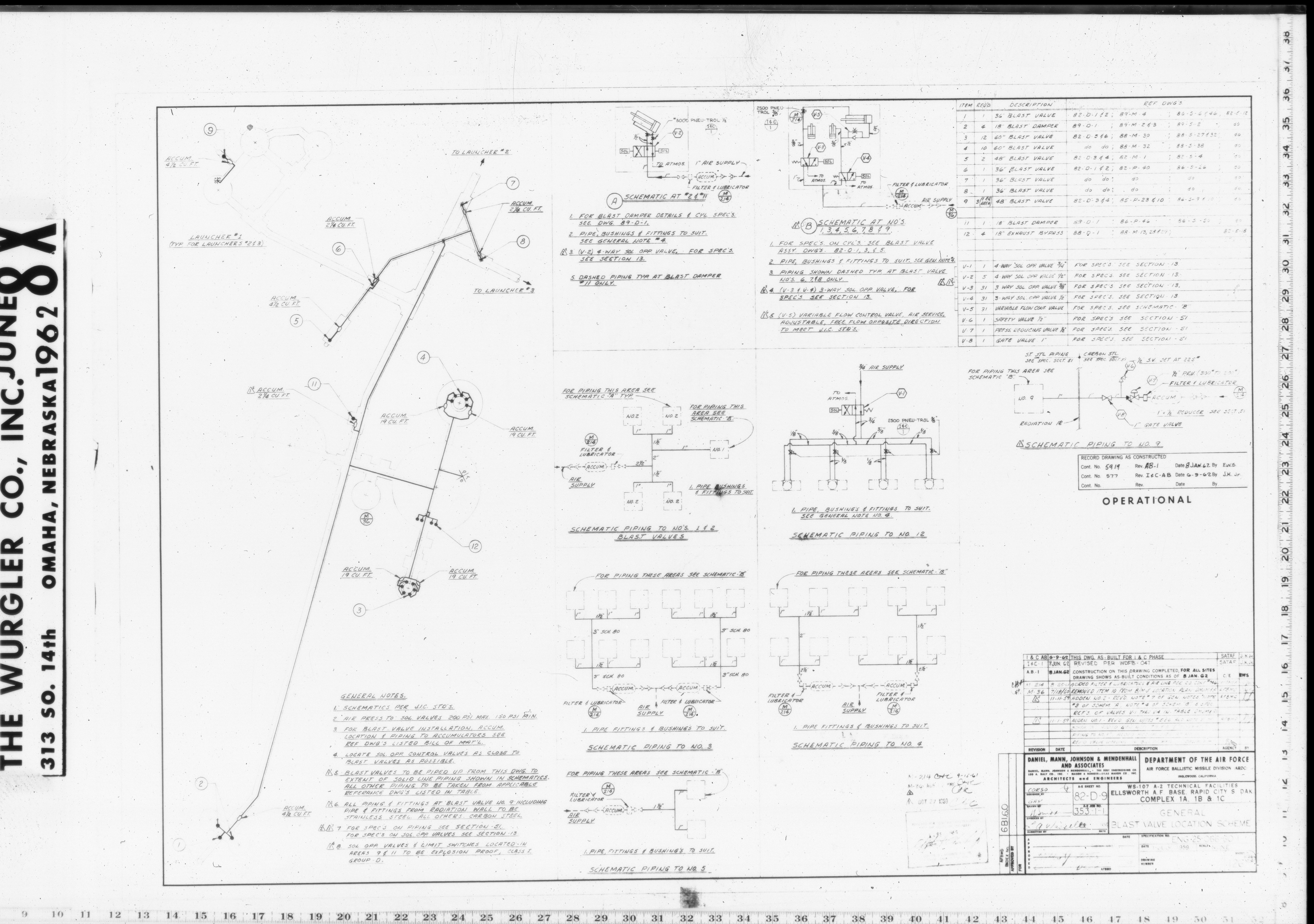

82-D-9 GENERAL BLAST VALVE LOCATION SCHEME

Air Handling - Mechanical drawings (2)

Drawing Number Description

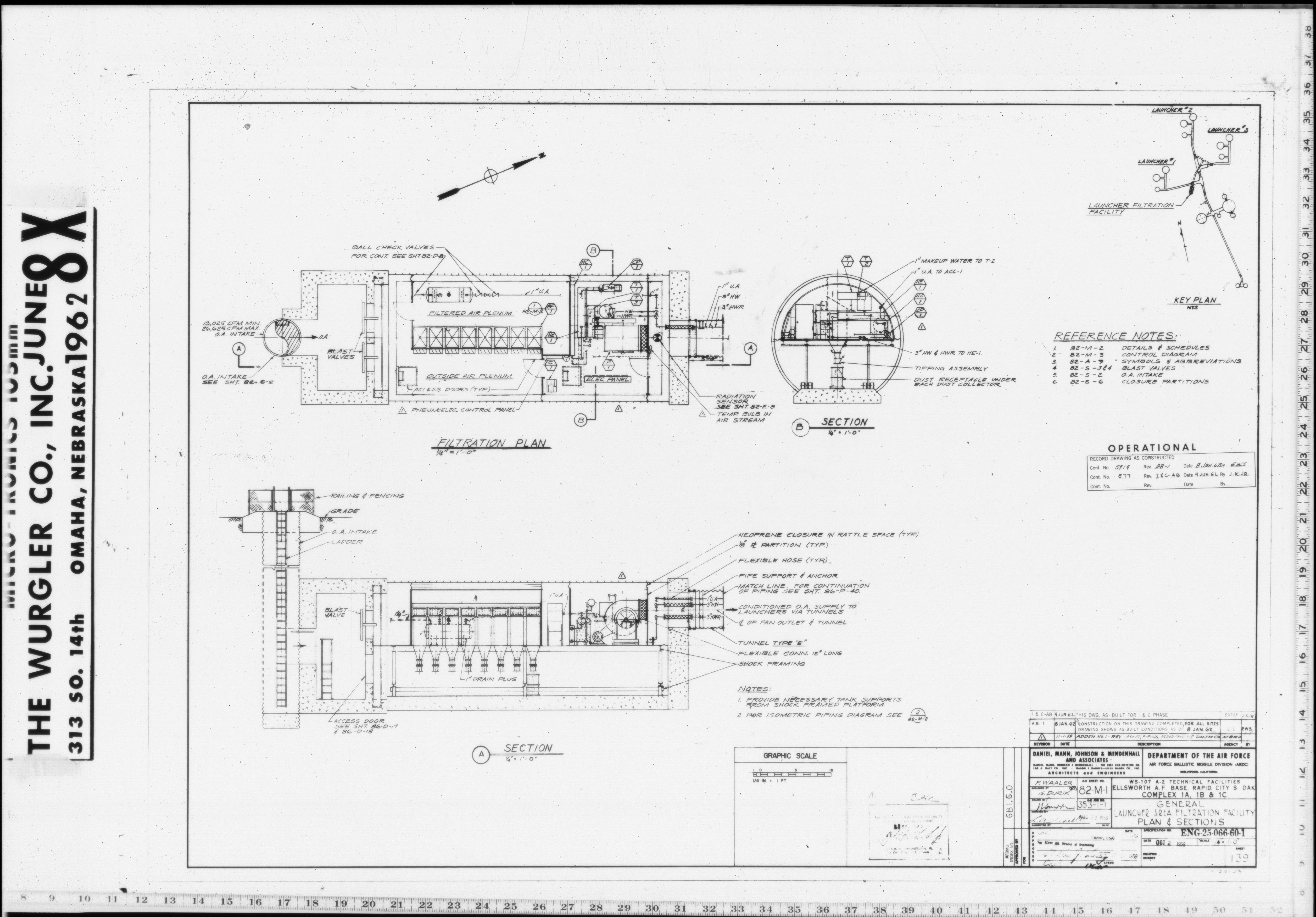

82-M-1 LAUNCHER AREA FILTRATION FACILITY PLAN & SECTIONS

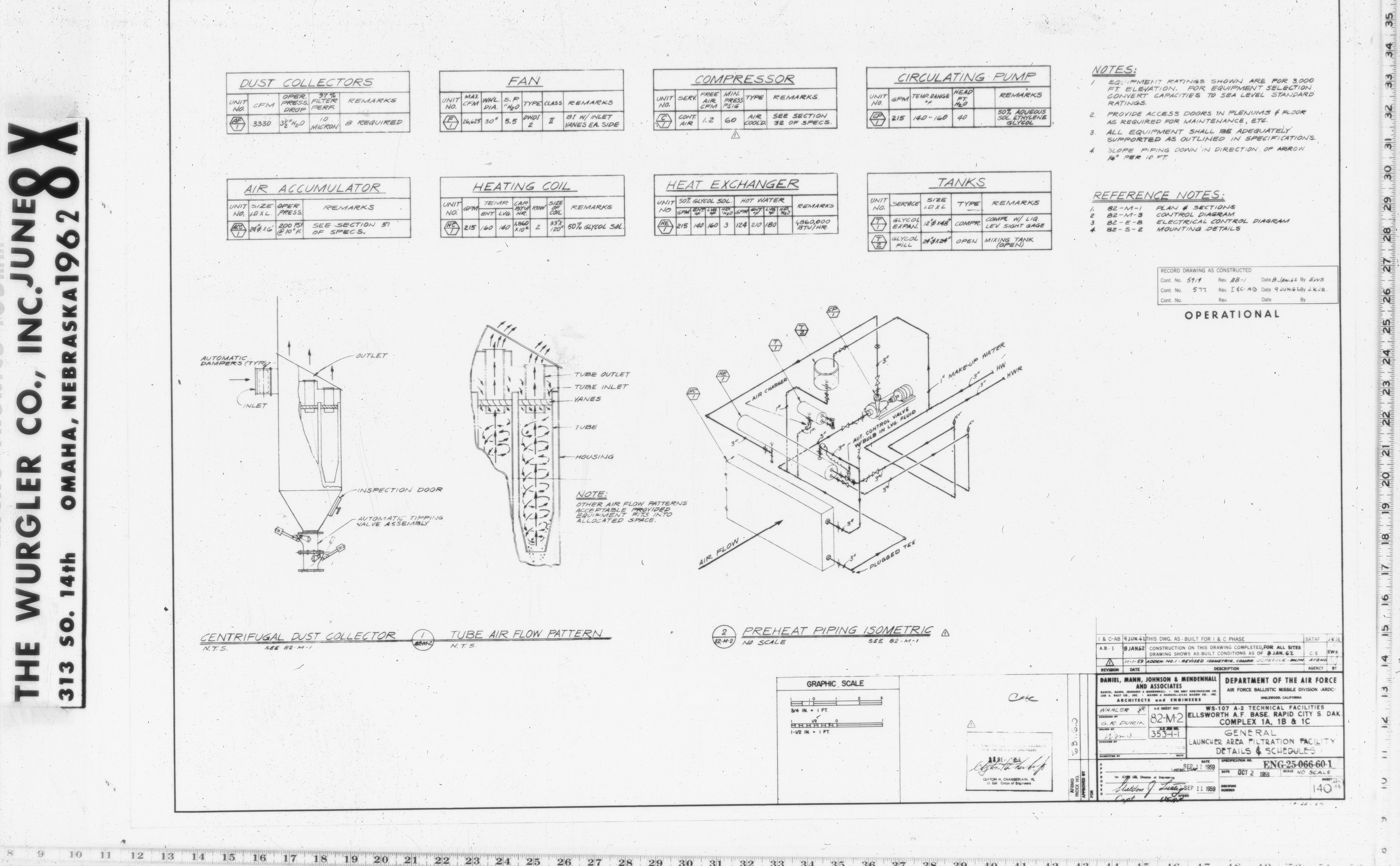

80-M-2 LAUNCHER AREA FILTRATION FACILITY DETAILS & SCHEDULES

Air Handling - Structural drawings (3)

Drawing Number Description
82-S-1 MISSING

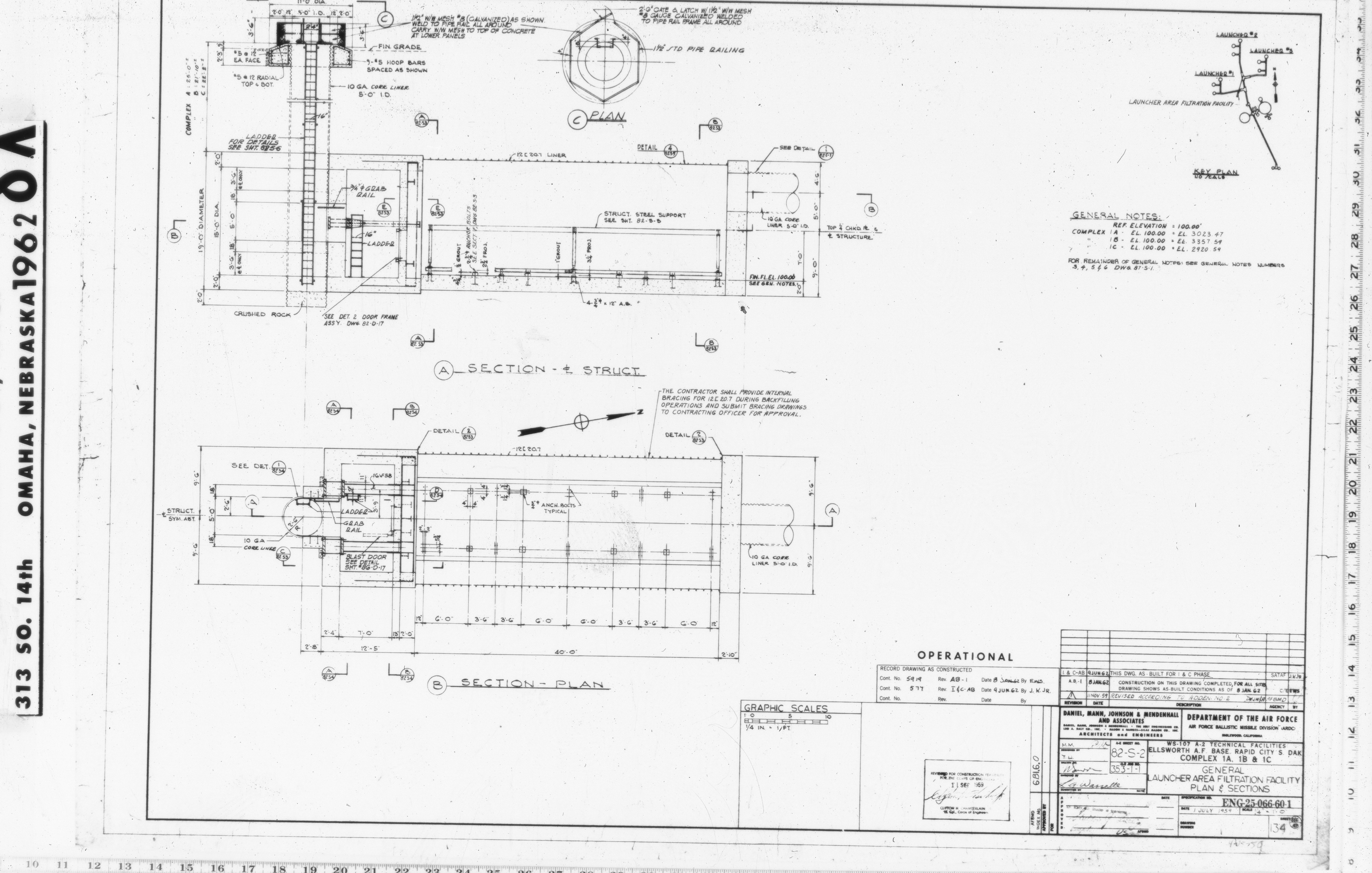

82-S-2 LAUNCHER AREA FILTRATION FACILITY PLAN & SECTIONS
82-S-3 MISSING
82-S-4 MISSING

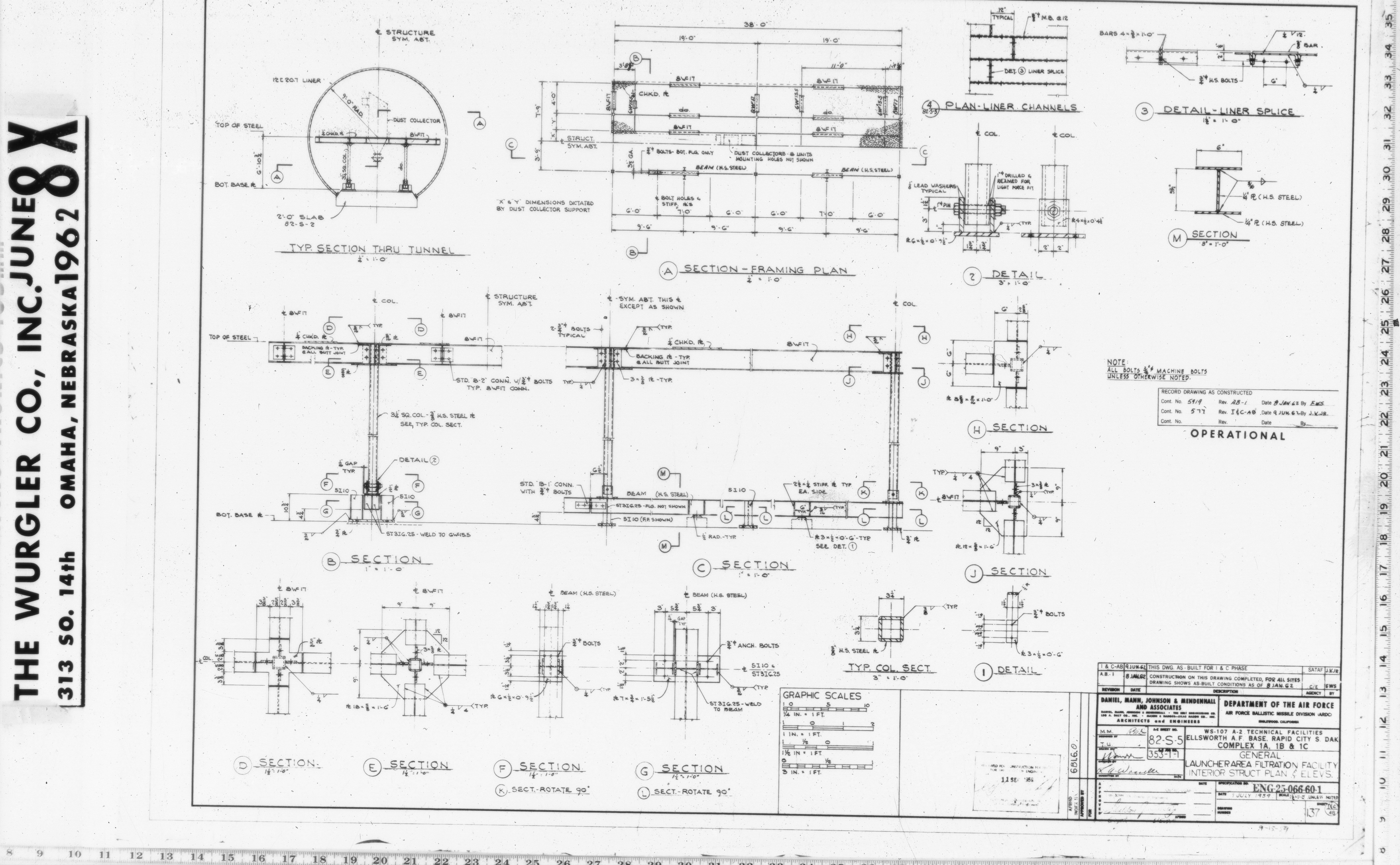

82-S-5 LAUNCHER AREA FILTRATION FACILITY INTERIOR STRUCT. PLAN & ELEVS.

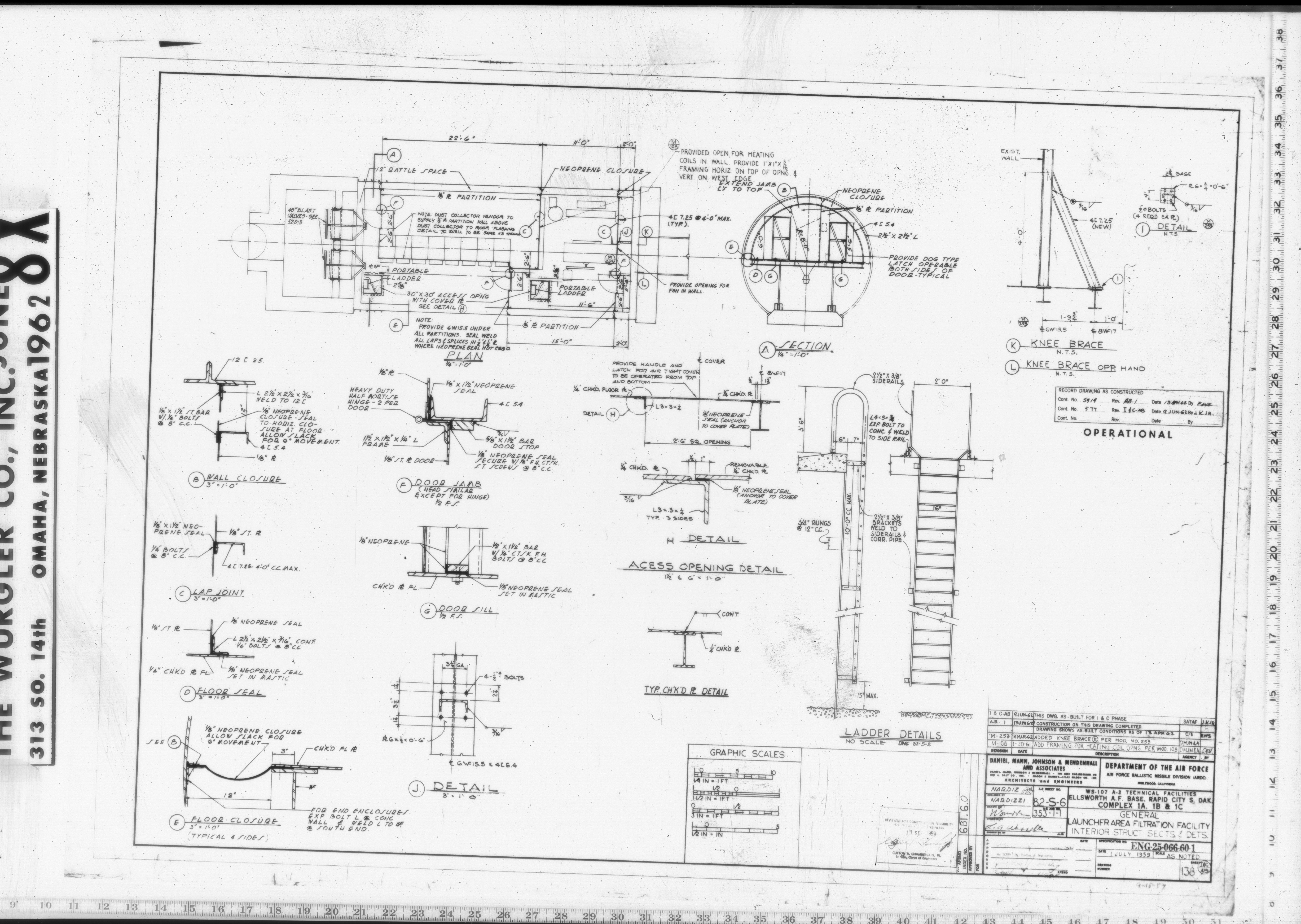

82-S-6 LAUNCHER AREA FILTRATION FACILITY INTERIOR STRUCT. SECTS. & DETS.
