Any gaps in the list of drawings will be marked as either MISSING or DELETED. Missing drawings are simply ones I don't have, whereas deleted drawings were removed from the set by the drafting company or contractor. This latter group means that a drawing might exist, but was not part of the as-built set of final plans, or was later modified.

The Tunnel blueprints are further broken down into the following sub-groups as shown in the following table and can be directly selected below to jump to those groups of drawings.

At this time, there are no drawings available in the following sub-groups: Composite, Details, HVAC, Mechanical and Piping.

There are currently 13 drawings in the Tunnel section.

NOTE: Drawing descriptions may be truncated and/or abbreviated to remove redundant text and maintain brevity in limited cell space.

Drawing Types

The following table provides quick selection of the types of drawings in the Tunnel section. You can choose a category below, or scroll down to see everything in order.

Sub-group Description
A Architectural
CP Composite (NONE AVAILABLE)
D Details (NONE AVAILABLE)
E Electrical
H HVAC (NONE AVAILABLE)
M Mechanical (NONE AVAILABLE)
P Piping (NONE AVAILABLE)
PL Plumbing
S Structural

Tunnel - Architectural drawings (2)

Drawing Number Description

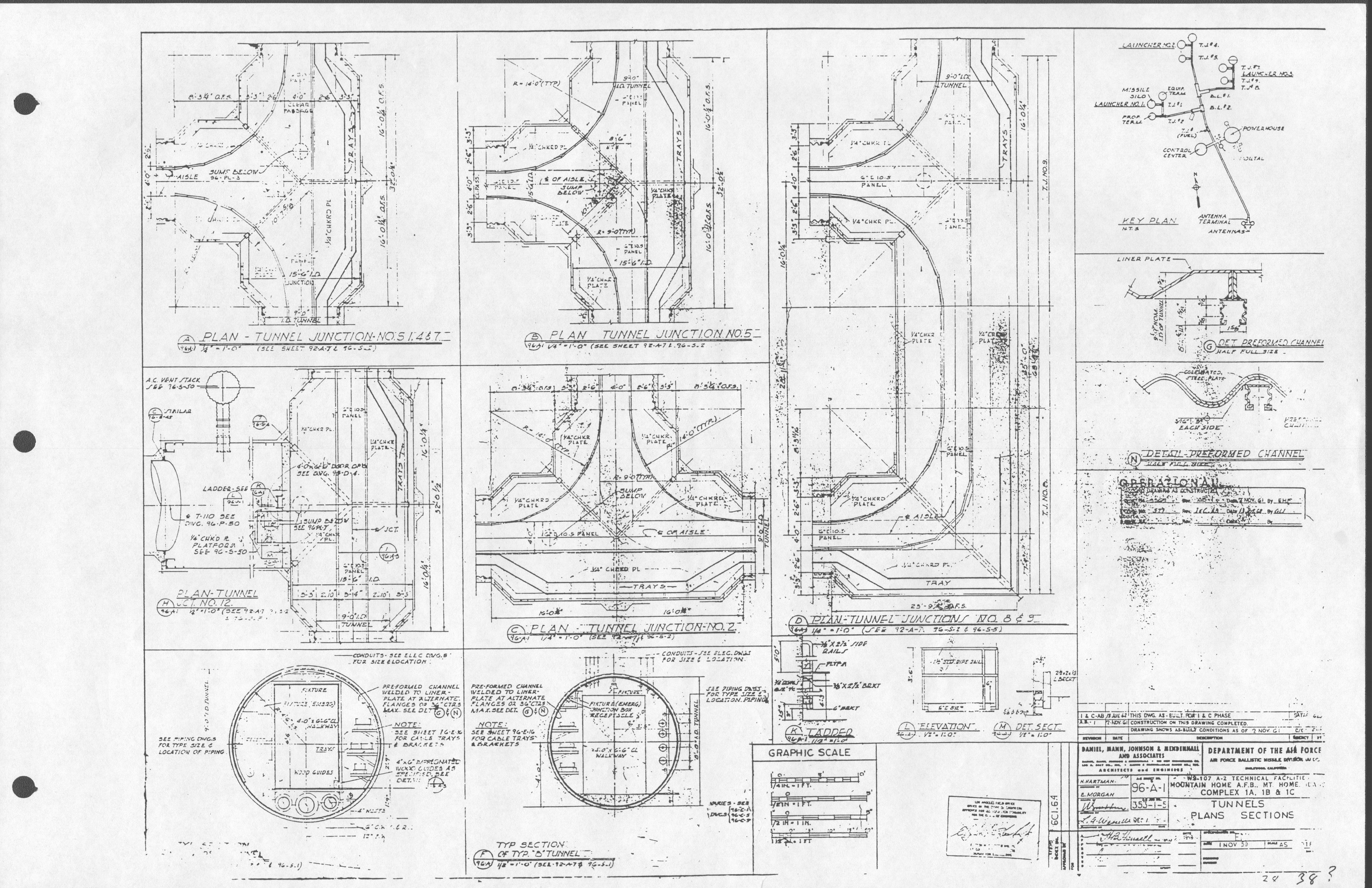

96-A-1 PLANS & SECTIONS

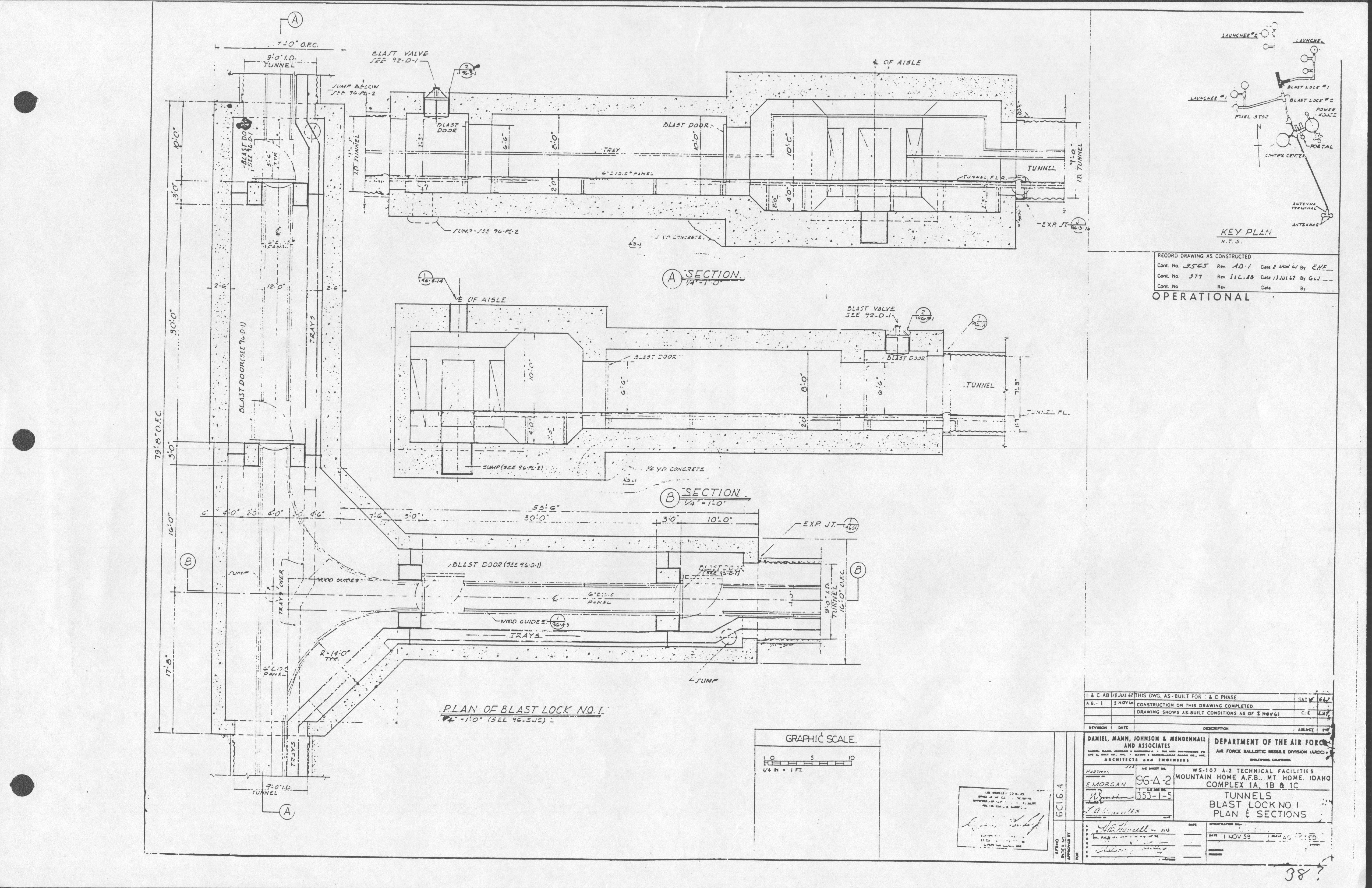

96-A-2 BLAST LOCK NO. 1 PLAN & SECTIONS

Tunnel - Composite drawings (0)

Drawing Number Description
-- N/A

Tunnel - Details drawings (0)

Drawing Number Description
-- N/A

Tunnel - Electrical drawings (1)

Drawing Number Description
96-E-1 MISSING *
96-E-2 MISSING *
96-E-3 MISSING *
96-E-4 MISSING *
96-E-5 MISSING *
96-E-6 MISSING *
96-E-7 MISSING *
96-E-8 MISSING *
96-E-9 MISSING *
96-E-10 MISSING *
96-E-11 MISSING *
96-E-12 MISSING *
96-E-13 MISSING *
96-E-14 MISSING *
96-E-15 MISSING *
96-E-16 MISSING *
96-E-17 MISSING *

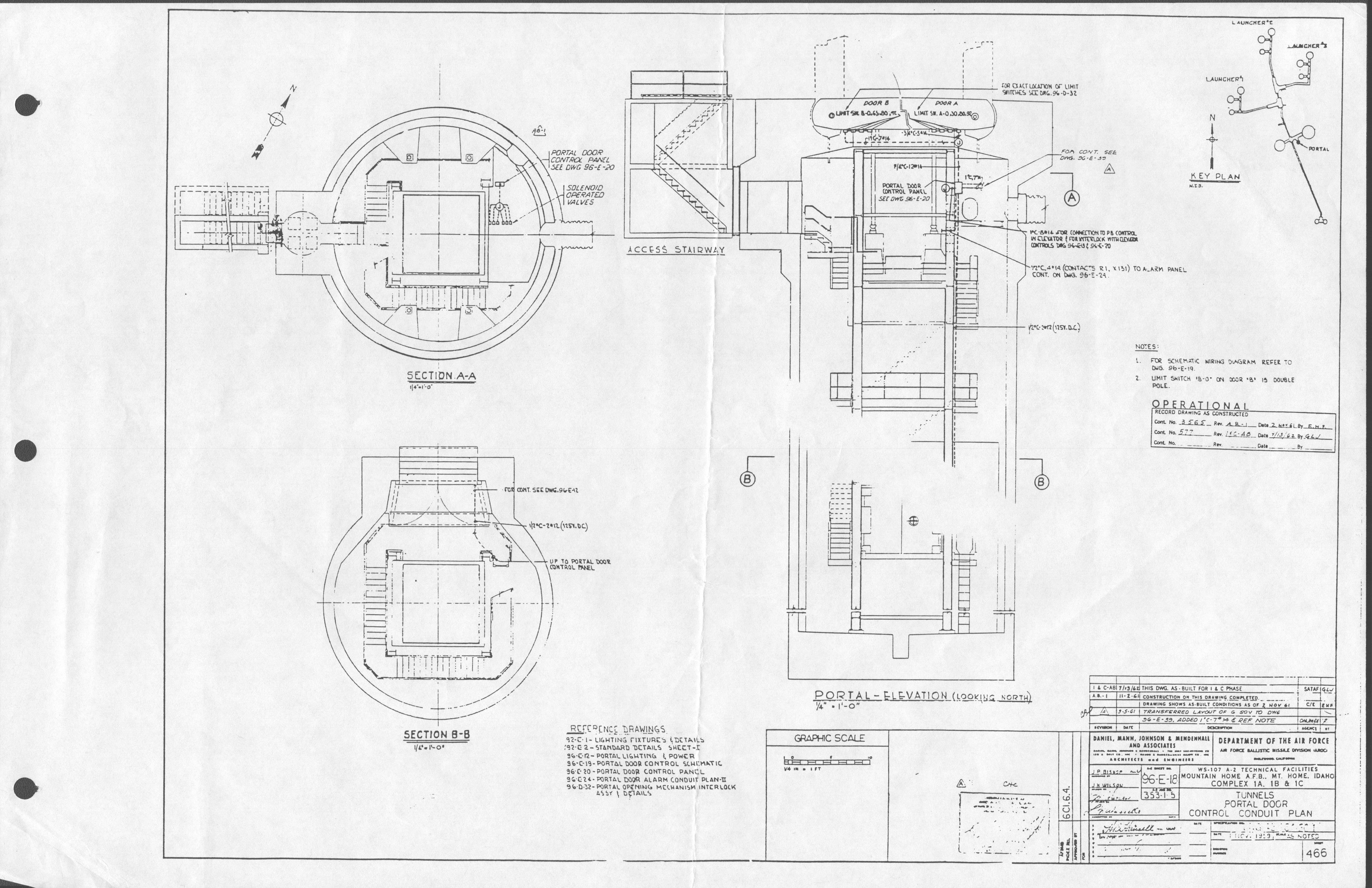

96-E-18 PORTAL DOOR CONTROL CONDUIT PLAN
* Drawing is thought to be missing, meaning that it is thought to be in the index, but unavailable. This drawing's existence is only suggested by another drawing with a higher number. E.g., If a drawing such as 92-S-3 exists, it is reasonable to infer that 92-S-1 and 92-S-2 also likely exist. It is possible however, that some drawings which are expected to exist may have been deleted from the drawing index, so there is no certainty that these drawings actually exist, and so these entries should only be considered as placeholders.

Tunnel - HVAC drawings (0)

Drawing Number Description
-- N/A

Tunnel - Mechanical drawings (0)

Drawing Number Description
-- N/A

Tunnel - Piping drawings (0)

Drawing Number Description
-- N/A

Tunnel - Plumbing drawings (1)

Drawing Number Description
96-PL-1 PLUMBING LOCATION PLAN

Tunnel - Structural drawings (9)

Drawing Number Description
96-S-1 MISSING *
96-S-2 MISSING *
96-S-3 MISSING *
96-S-4 MISSING *
96-S-5 MISSING *
96-S-6 ANTENNA TERMINAL JUNCTION PLAN & SECTIONS
96-S-7 ANTENNA TERMINAL JUNCTION DETAILS & SECTIONS

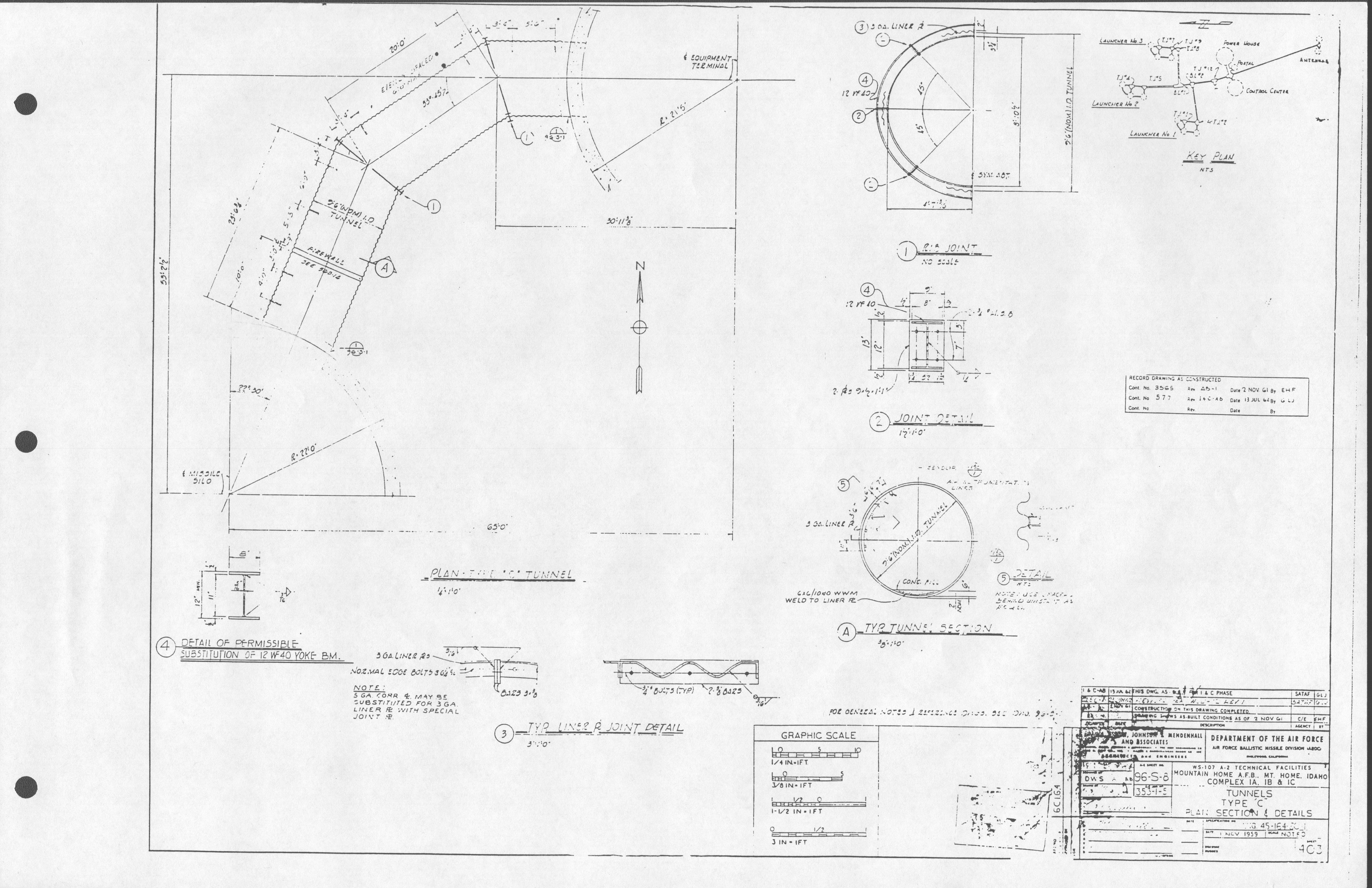

96-S-8 TYPE "C" PLAN SECTION & DETAILS

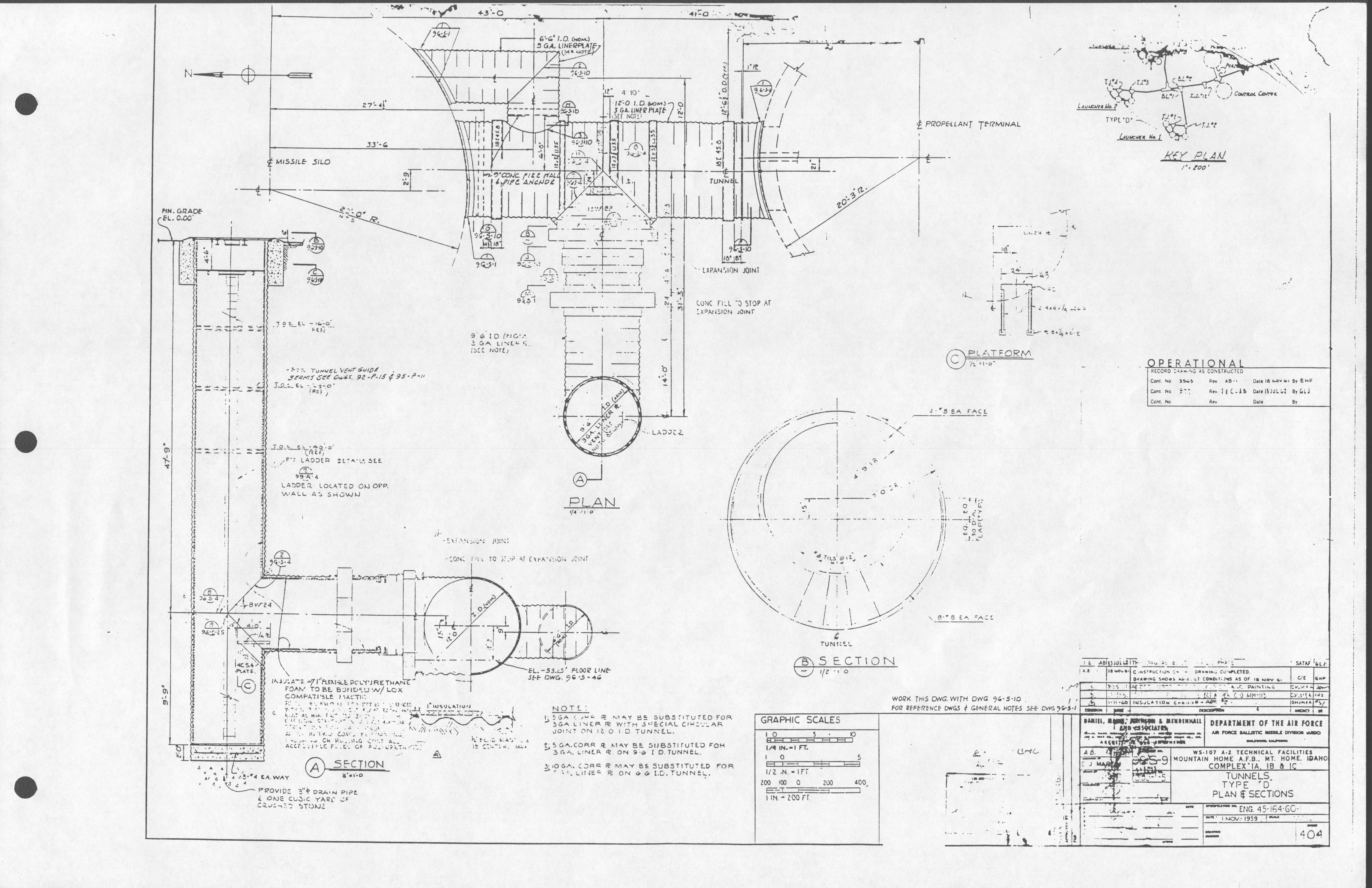

96-S-9 TYPE "D" PLAN & SECTIONS
96-S-10 TYPE "D" PLAN & DETAILS
96-S-11 MISSING *
96-S-12 BLAST LOCK NO. 1 CONC. FLOOR - PLAN & SECTION
96-S-13 MISSING *
96-S-14 MISSING *
96-S-15 MISSING *
96-S-16 MISSING *
96-S-17 MISSING *

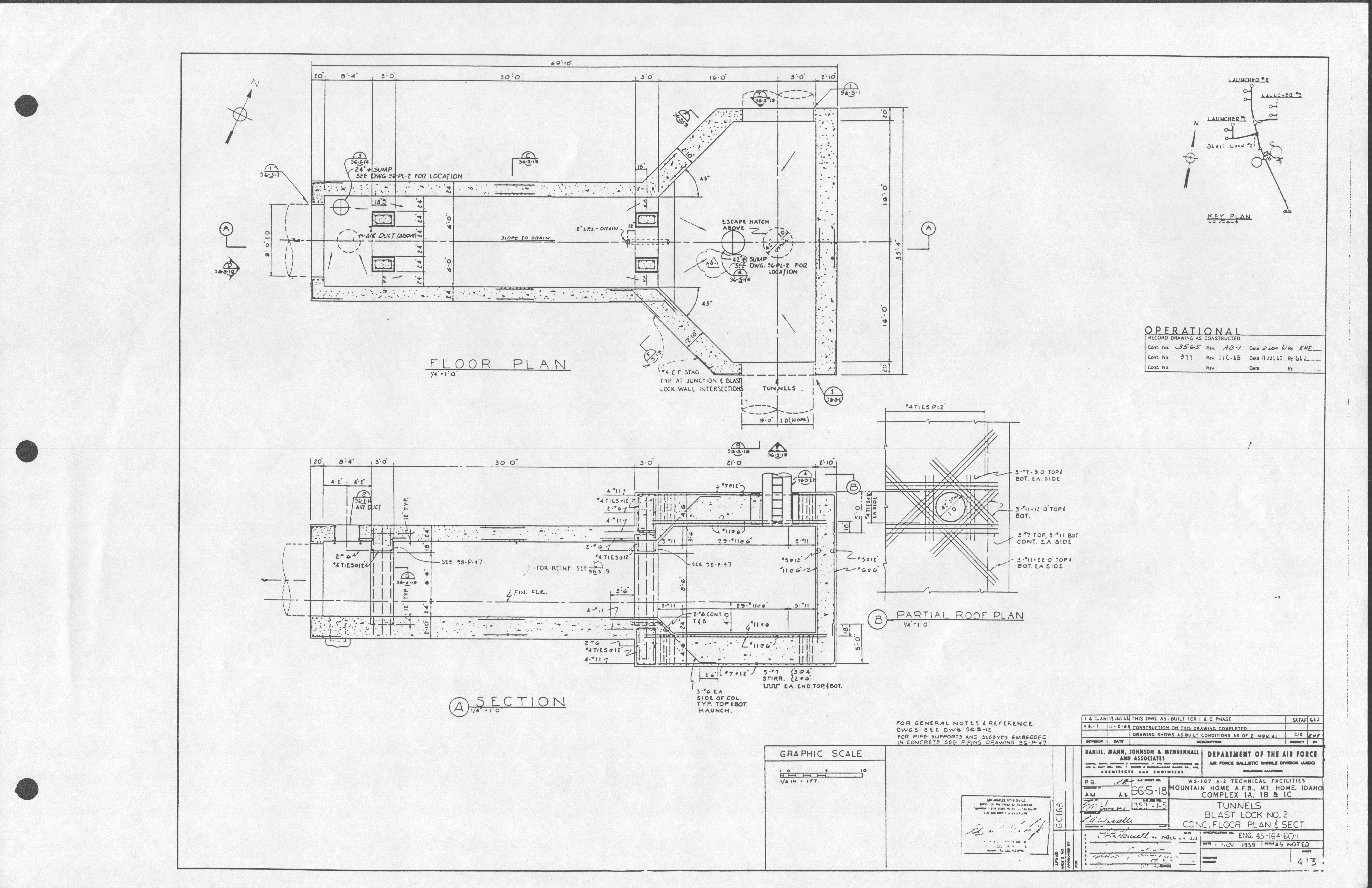

96-S-18 BLAST LOCK NO. 2 CONC. FLOOR PLAN & SECTION
96-S-19 MISSING *
96-S-20 MISSING *
96-S-21 MISSING *
96-S-22 MISSING *
96-S-23 MISSING *
96-S-24 MISSING *
96-S-25 MISSING *

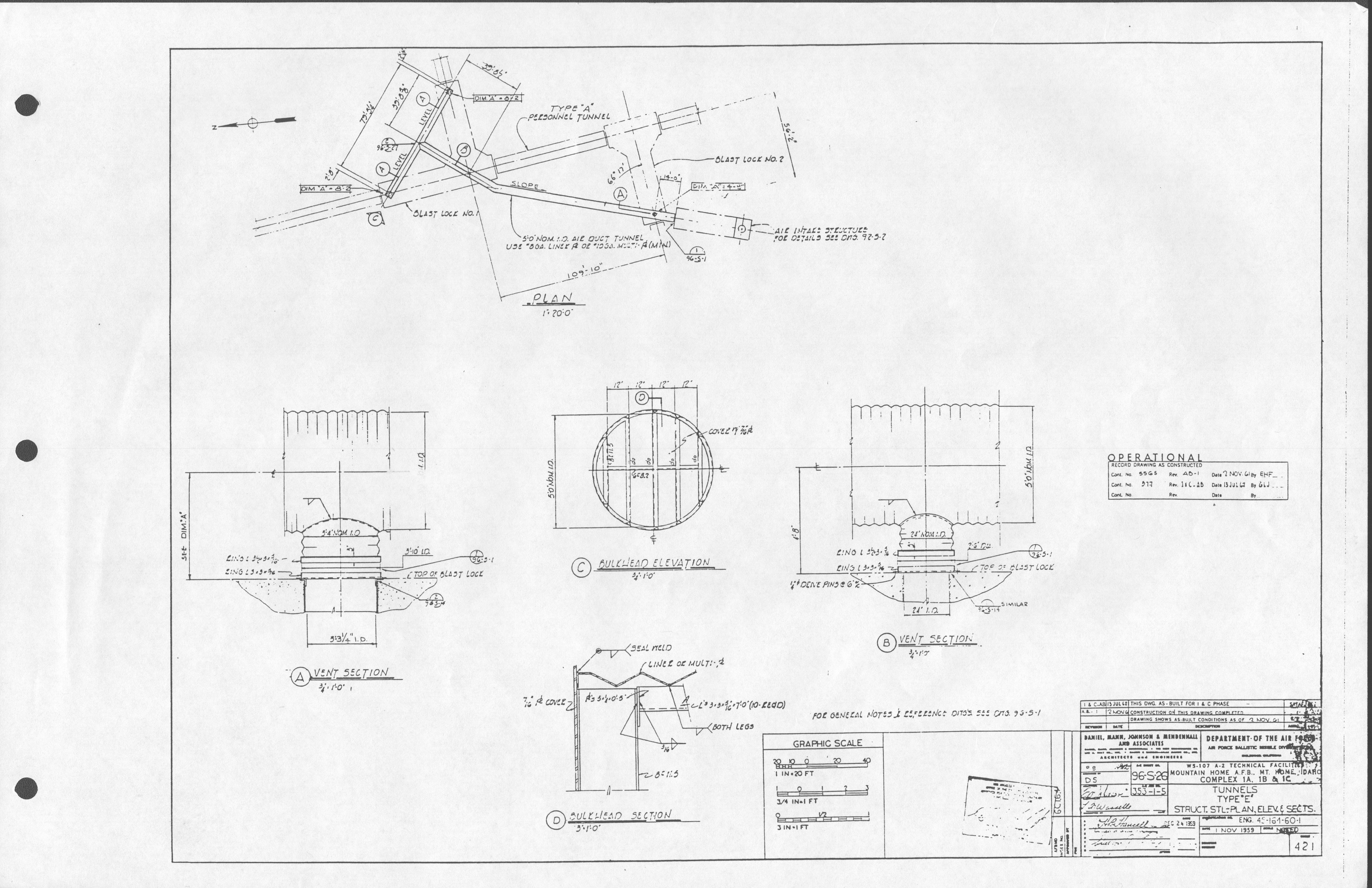

96-S-26 TYPE "E" STRUCT. STL. - PLAN, ELEV. & SECTS.
96-S-27 MISSING *
96-S-28 MISSING *
96-S-29 MISSING *
96-S-30 MISSING *
96-S-31 MISSING *
96-S-32 MISSING *
96-S-33 MISSING *
96-S-34 MISSING *
96-S-35 MISSING *
96-S-36 MISSING *
96-S-37 MISSING *
96-S-38 MISSING *
96-S-39 MISSING *
96-S-40 MISSING *
96-S-41 MISSING *
96-S-42 MISSING *
96-S-43 MISSING *
96-S-44 MISSING *
96-S-45 MISSING *

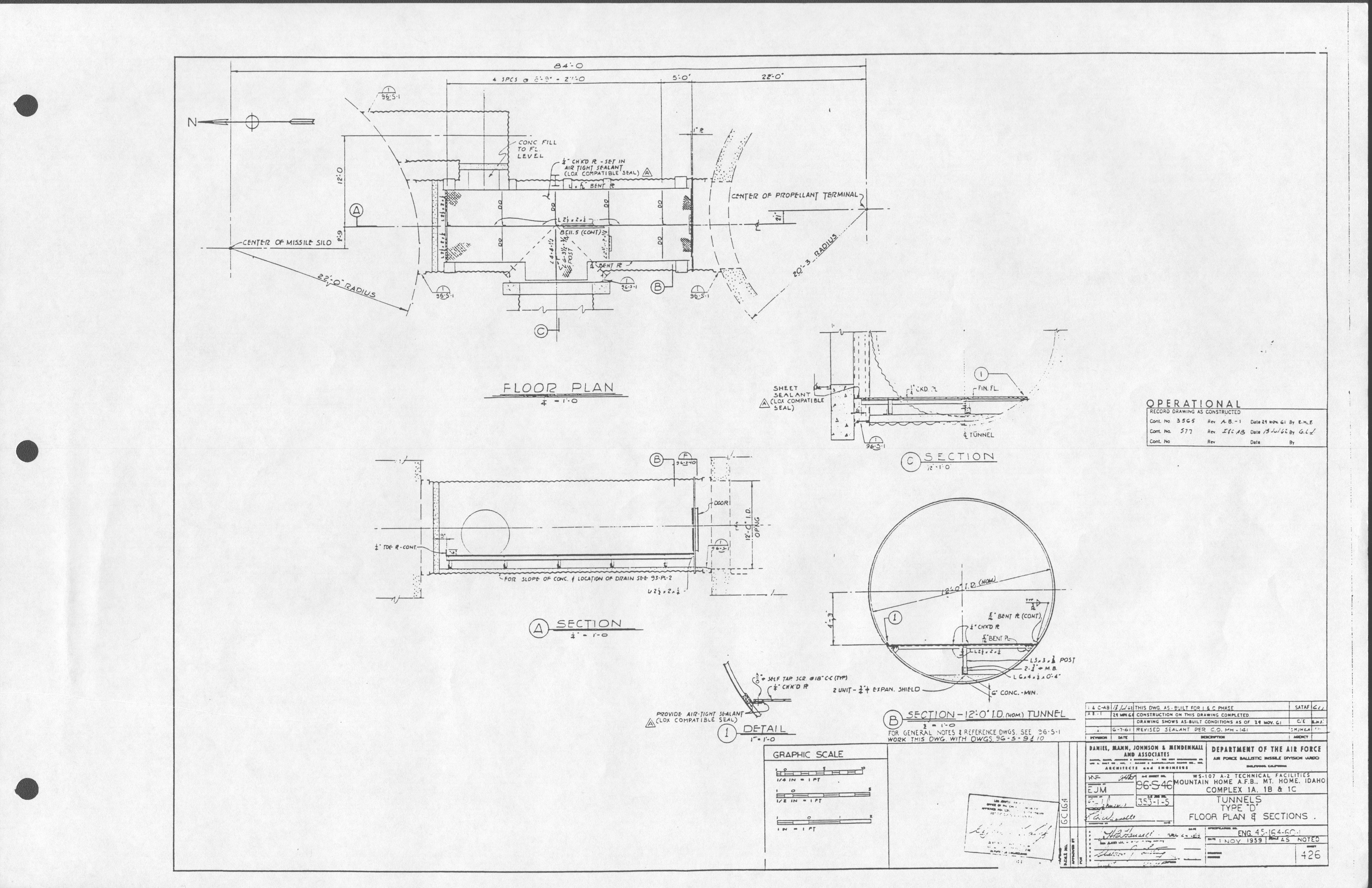

96-S-46 TYPE "D" FLOOR PLAN & SECTIONS
* Drawing is thought to be missing, meaning that it is thought to be in the index, but unavailable. This drawing's existence is only suggested by another drawing with a higher number. E.g., If a drawing such as 92-S-3 exists, it is reasonable to infer that 92-S-1 and 92-S-2 also likely exist. It is possible however, that some drawings which are expected to exist may have been deleted from the drawing index, so there is no certainty that these drawings actually exist, and so these entries should only be considered as placeholders.
