Any gaps in the list of drawings will be marked as either MISSING or DELETED. Missing drawings are simply ones I don't have, whereas deleted drawings were removed from the set by the drafting company or contractor. This latter group means that a drawing might exist, but was not part of the as-built set of final plans, or was later modified.

The Missile Silo blueprints are further broken down into the following sub-groups as shown in the following table and can be directly selected below to jump to those groups of drawings.

At this time, there are no drawings available in the following sub-groups: Composite, Details, HVAC, Piping and Plumbing.

There are currently 21 drawings in the Missile Silo section.

NOTE: Drawing descriptions may be truncated and/or abbreviated to remove redundant text and maintain brevity in limited cell space.

Drawing Types

The following table provides quick selection of the types of drawings in the Missile Silo section. You can choose a category below, or scroll down to see everything in order.

Sub-group Description
A Architectural
CP Composite (NONE AVAILABLE)
D Details (NONE AVAILABLE)
E Electrical
H HVAC (NONE AVAILABLE)
M Mechanical
P Piping (NONE AVAILABLE)
PL Plumbing (NONE AVAILABLE)
S Structural

Missile Silo - Architectural drawings (4)

Drawing Number Description

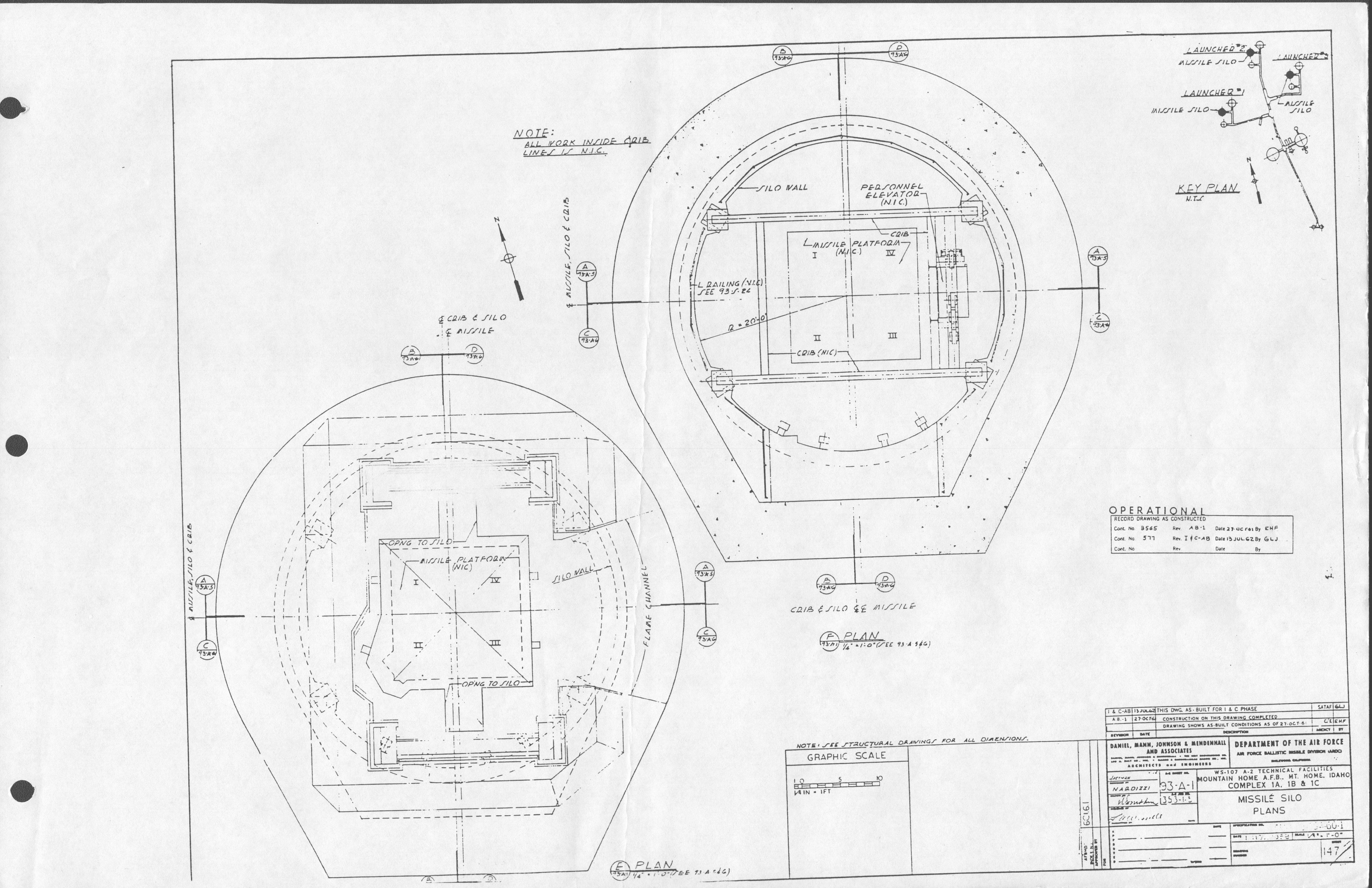

93-A-1 MISSILE SILO PLANS
93-A-2 MISSING *

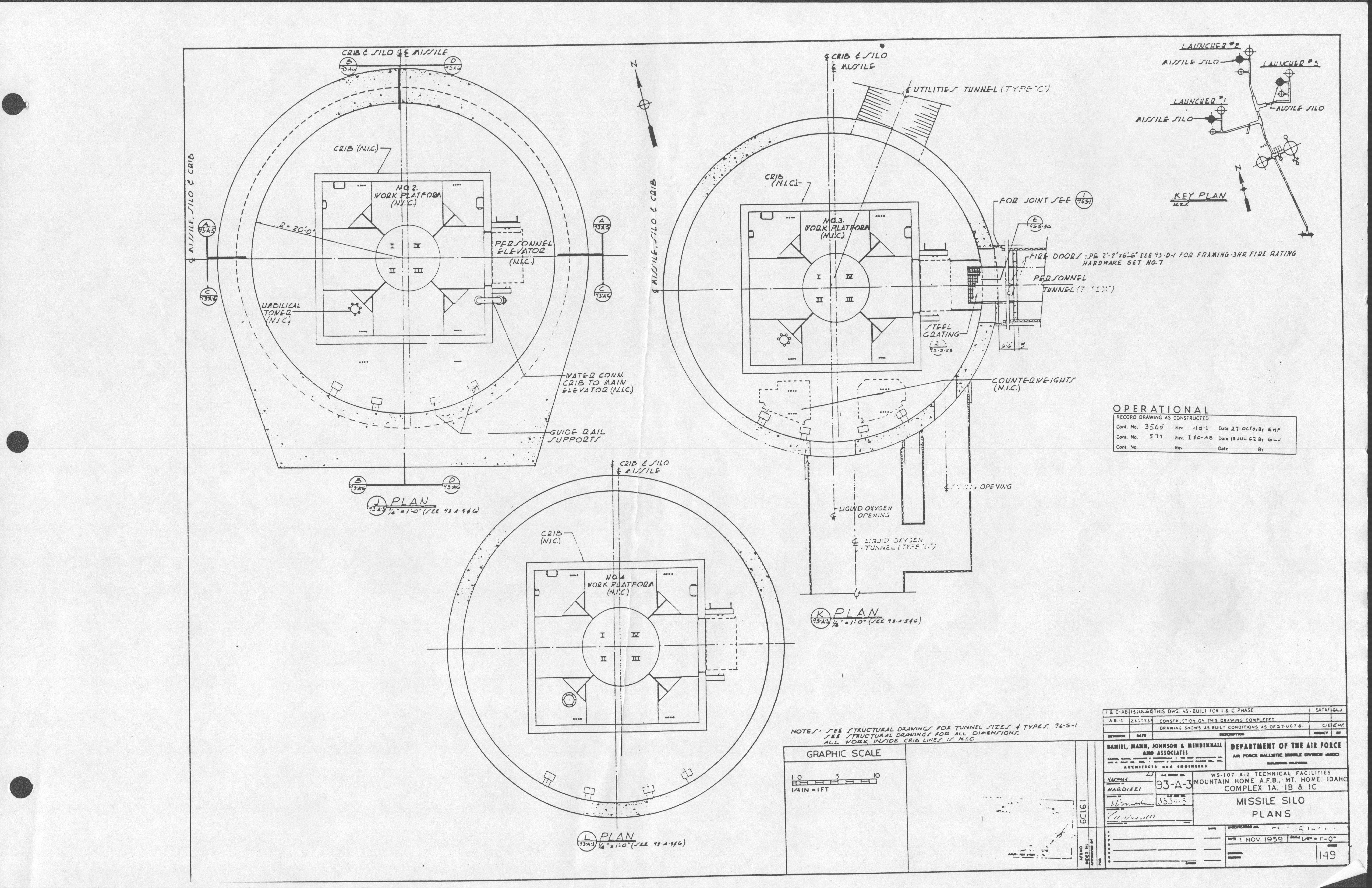

93-A-3 MISSILE SILO PLANS
93-A-4 MISSING *

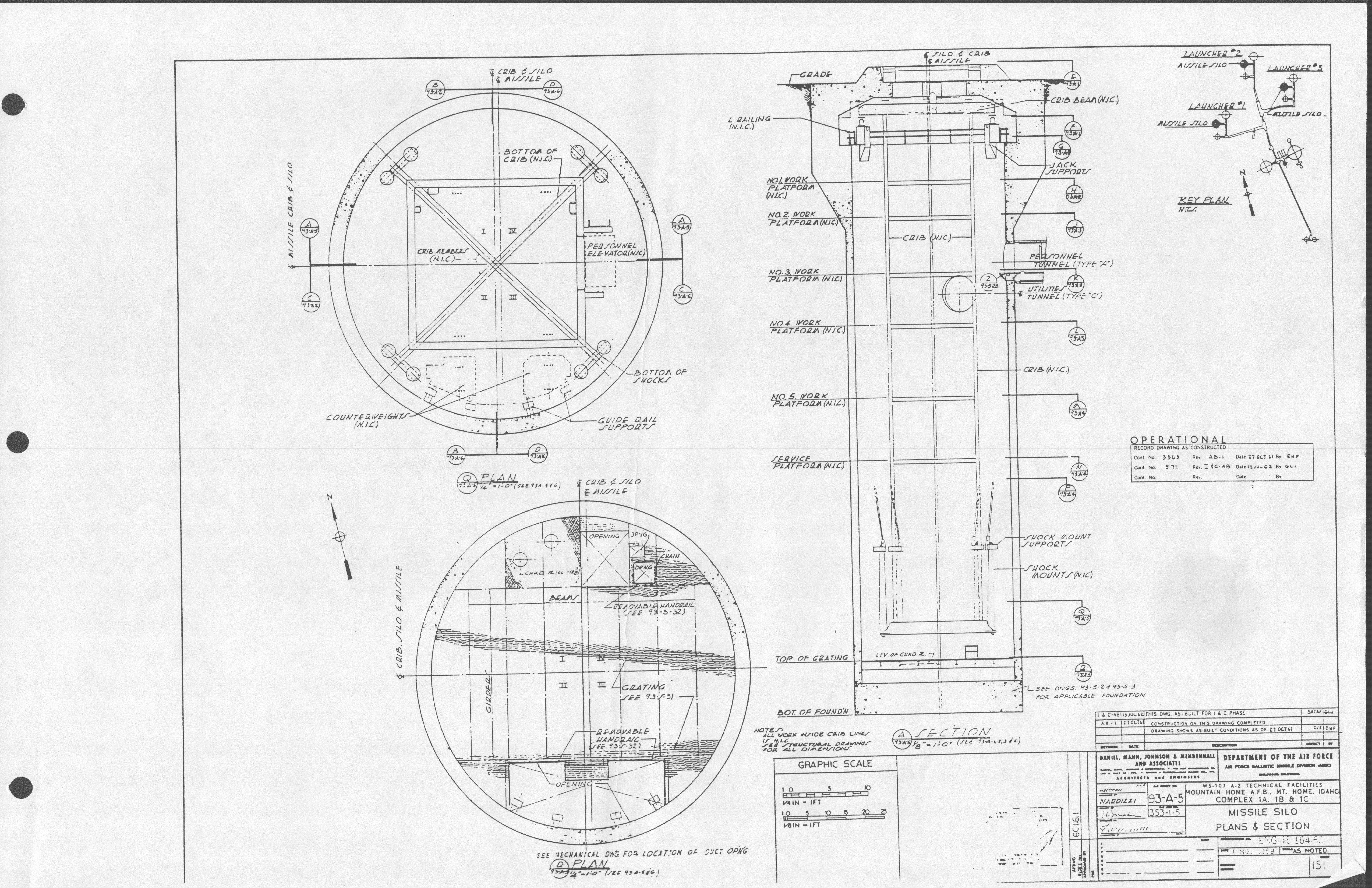

93-A-5 MISSILE SILO PLANS & SECTION

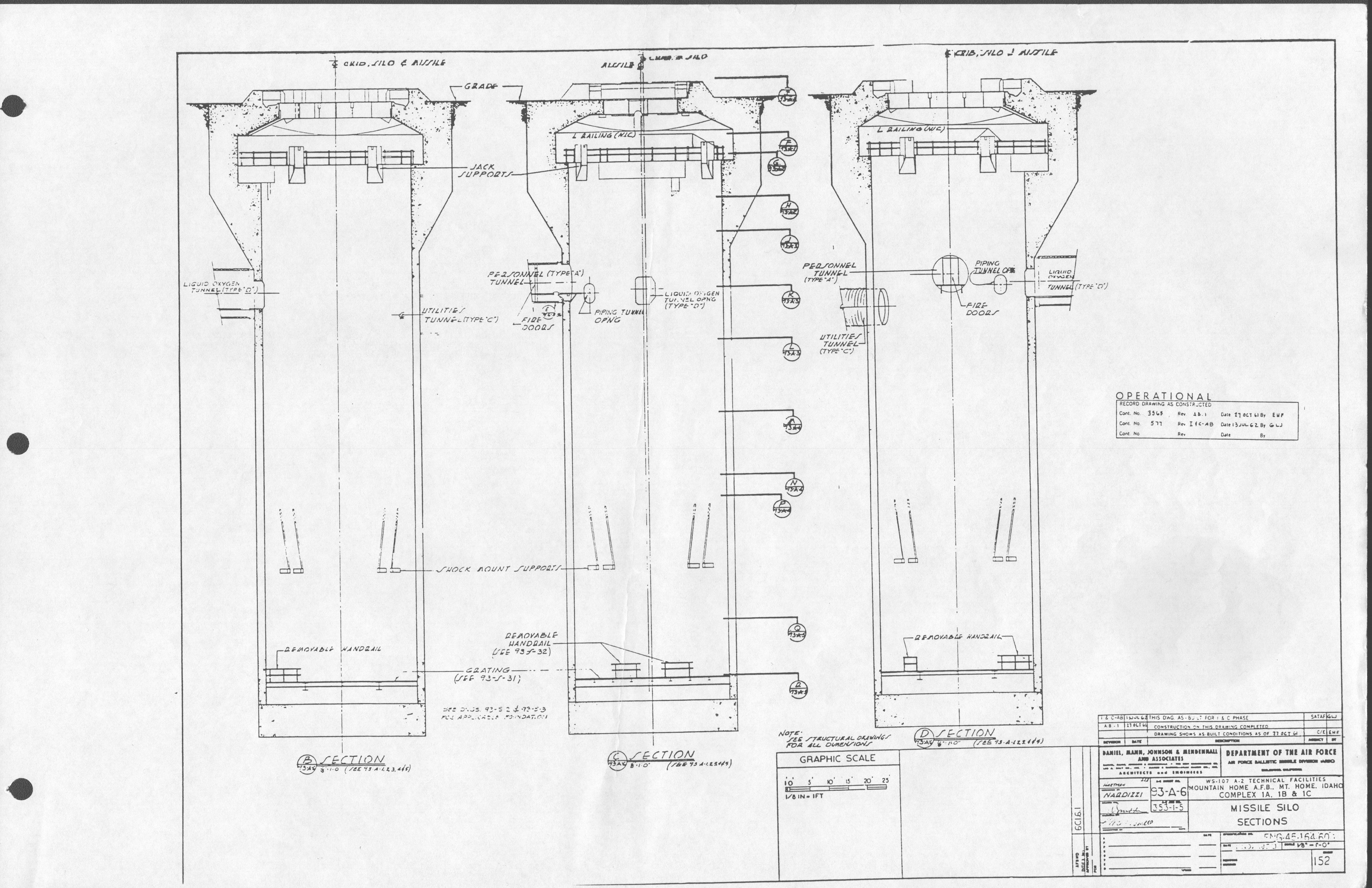

93-A-6 MISSILE SILO SECTIONS
* Drawing is thought to be missing, meaning that it is thought to be in the index, but unavailable. This drawing's existence is only suggested by another drawing with a higher number. E.g., If a drawing such as 92-S-3 exists, it is reasonable to infer that 92-S-1 and 92-S-2 also likely exist. It is possible however, that some drawings which are expected to exist may have been deleted from the drawing index, so there is no certainty that these drawings actually exist, and so these entries should only be considered as placeholders.

Missile Silo - Composite drawings (0)

Drawing Number Description
-- N/A

Propellent Terminal - Details drawings (0)

Drawing Number Description
-- N/A

Missile Silo - Electrical drawings (2)

Drawing Number Description
93-E-1 MISSING *
93-E-2 MISSING *
93-E-3 MISSING *

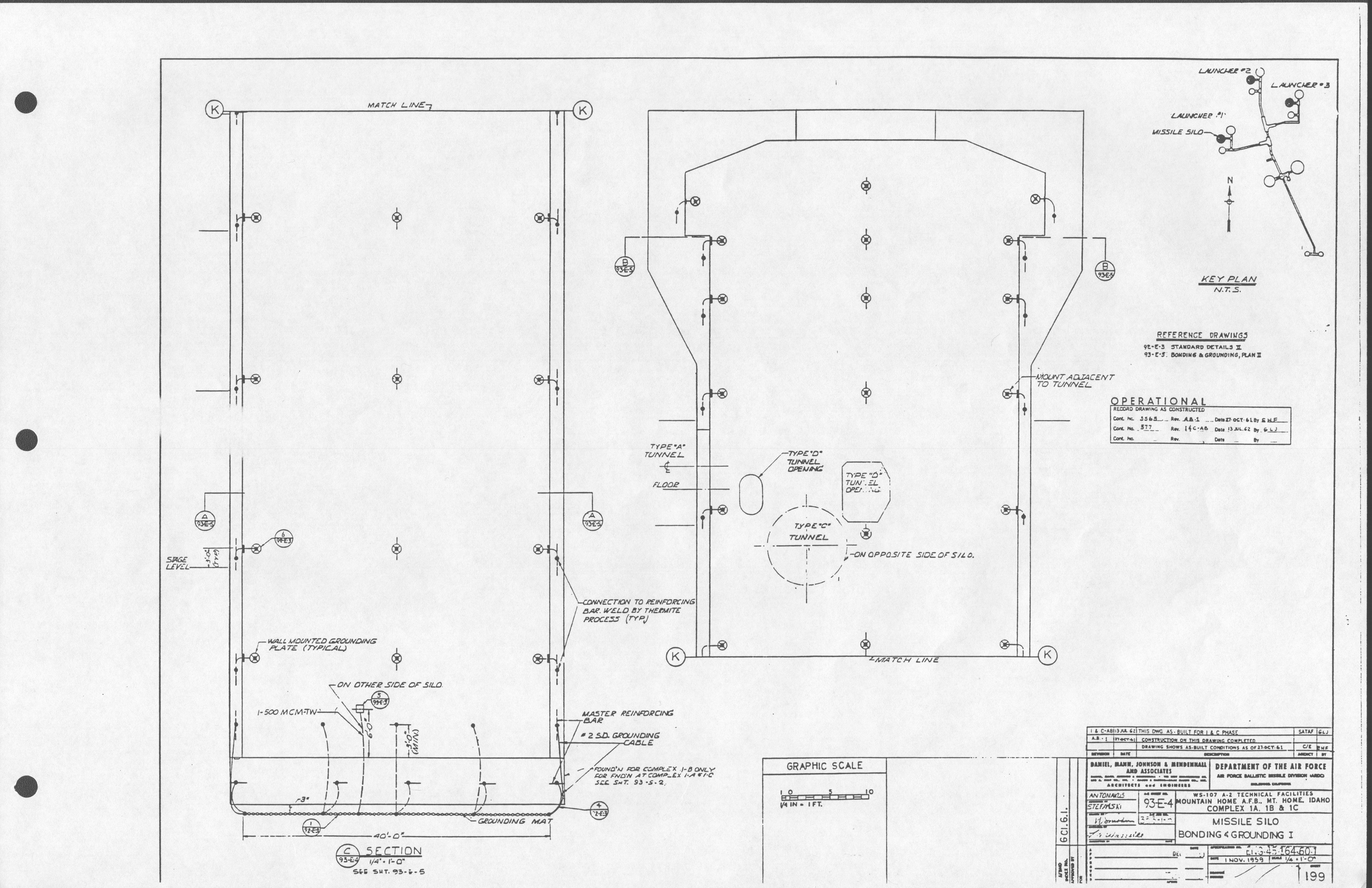

93-E-4 MISSILE SILO BONDING & GROUNDING I

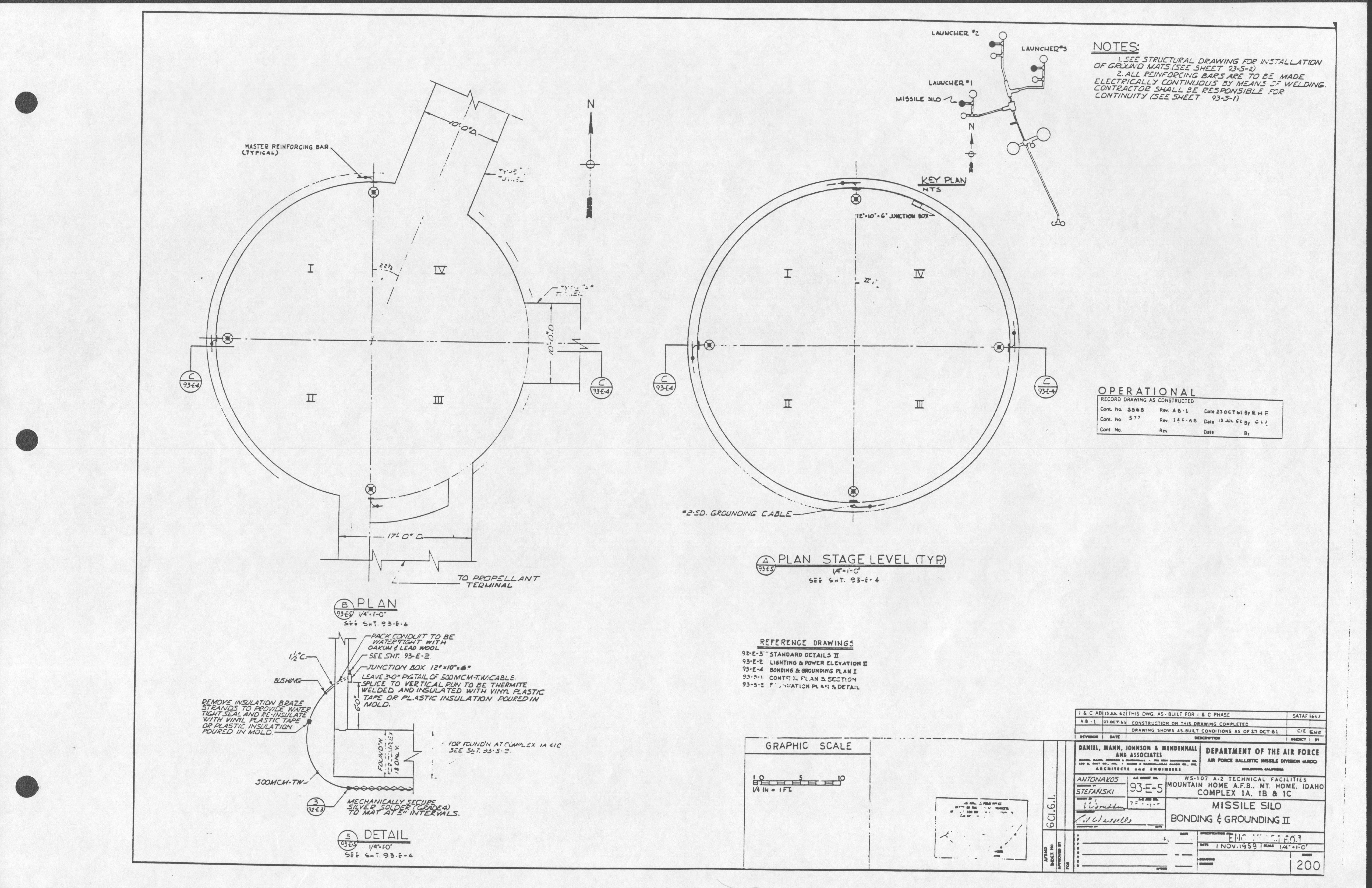

93-E-5 MISSILE SILO BONDING & GROUNDING II
* Drawing is thought to be missing, meaning that it is thought to be in the index, but unavailable. This drawing's existence is only suggested by another drawing with a higher number. E.g., If a drawing such as 92-S-3 exists, it is reasonable to infer that 92-S-1 and 92-S-2 also likely exist. It is possible however, that some drawings which are expected to exist may have been deleted from the drawing index, so there is no certainty that these drawings actually exist, and so these entries should only be considered as placeholders.

Missile Silo - HVAC drawings (0)

Drawing Number Description
-- N/A

Missile Silo - Mechanical drawings (1)

Drawing Number Description

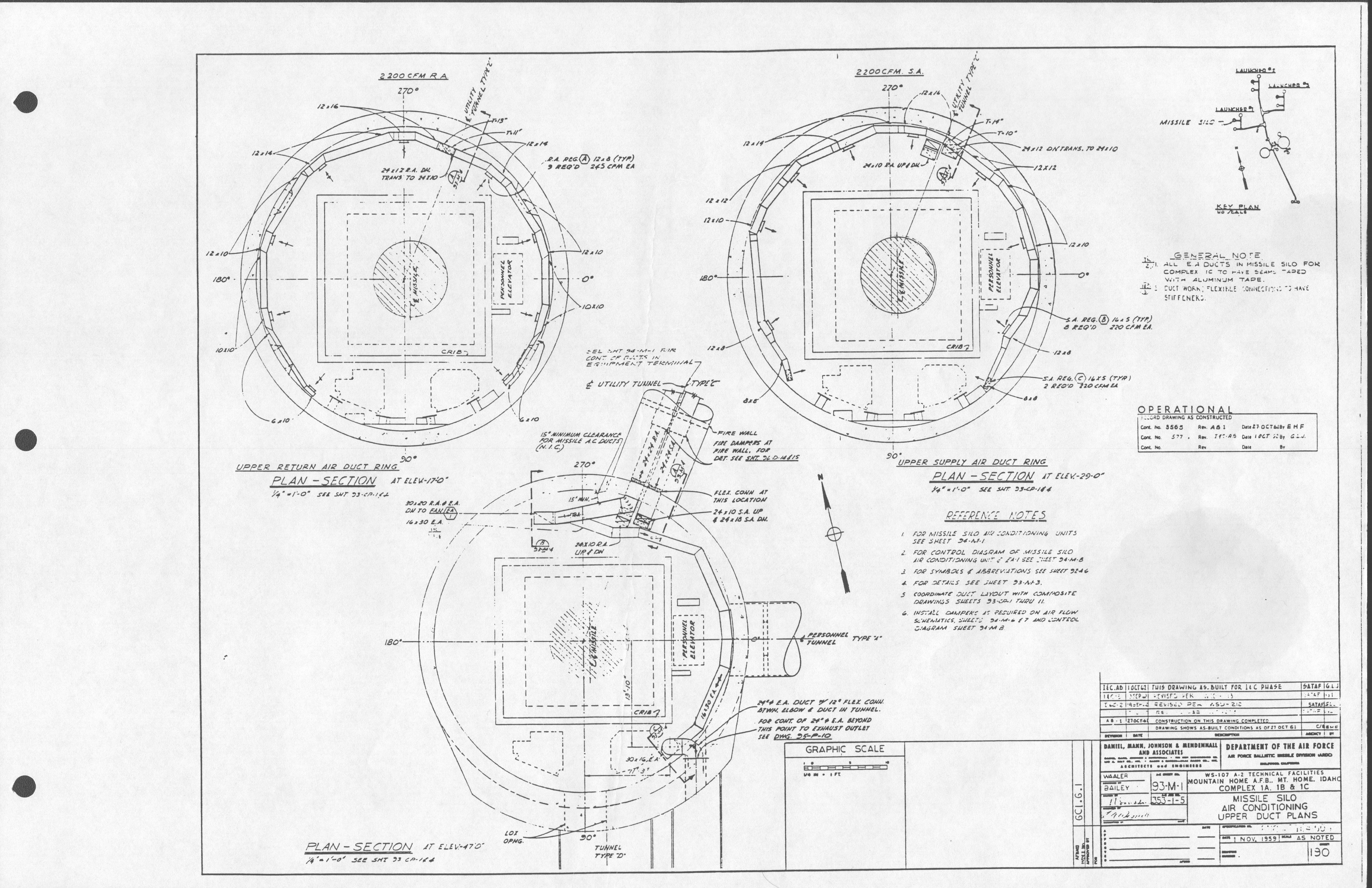

93-M-1 AIR CONDITIONING UPPER DUCT PLANS

Missile Silo - Piping drawings (0)

Drawing Number Description
-- N/A

Missile Silo - Plumbing drawings (0)

Drawing Number Description
-- N/A

Missile Silo - Structural drawings (14)

Drawing Number Description

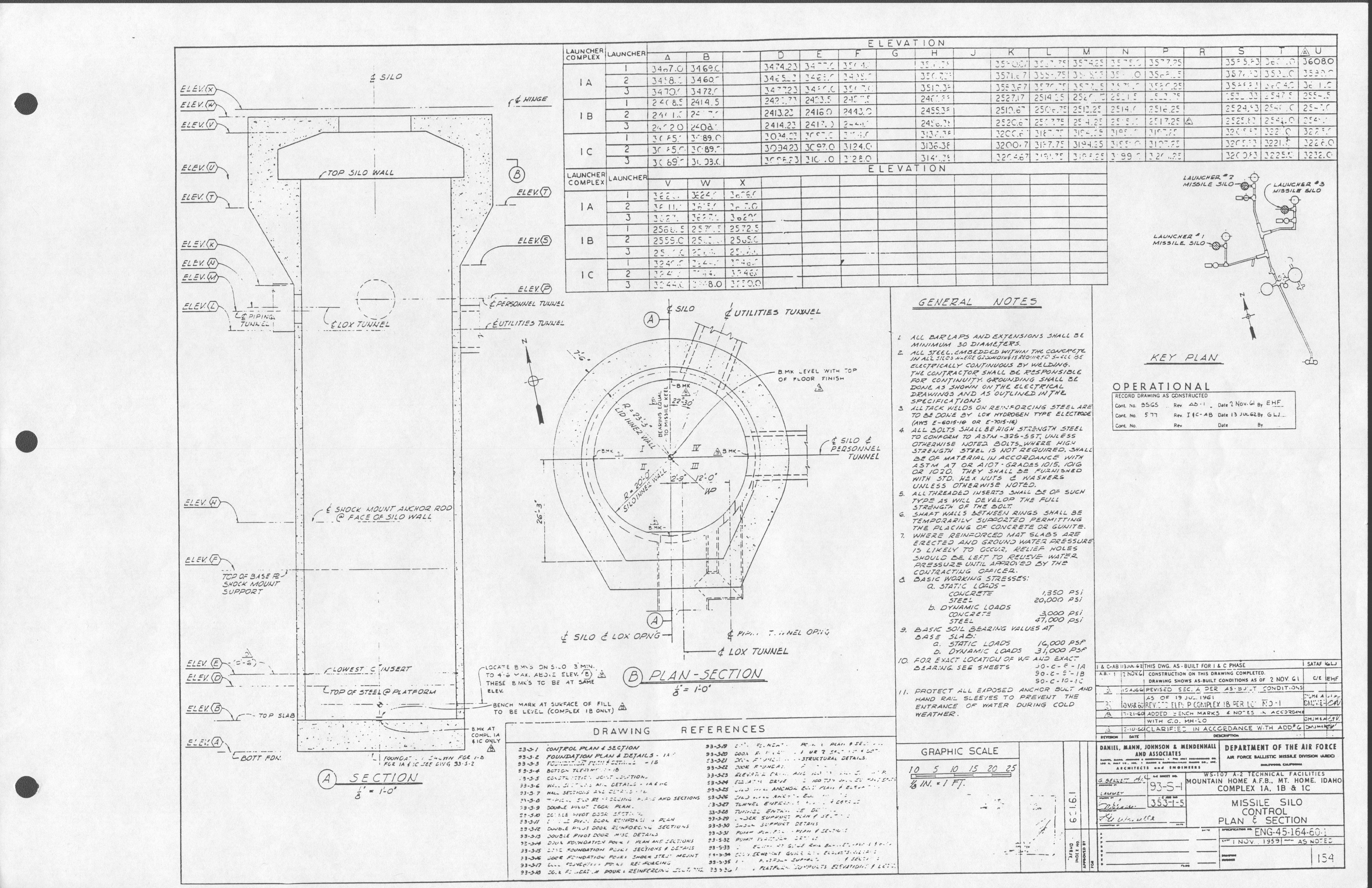

93-S-1 CONTROL PLAN & SECTION

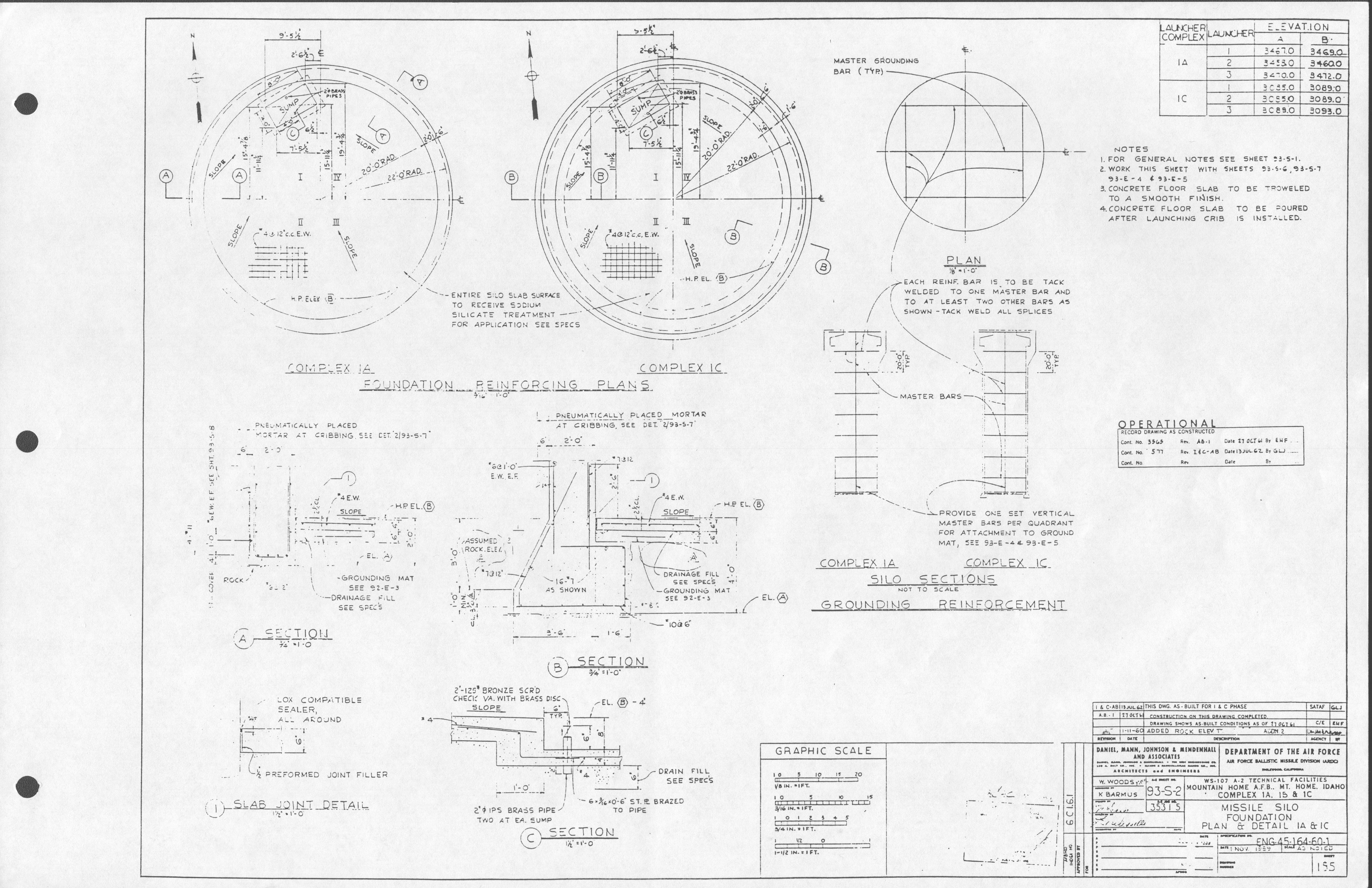

93-S-2 FOUNDATION PLAN & DETAIL 1A & 1C

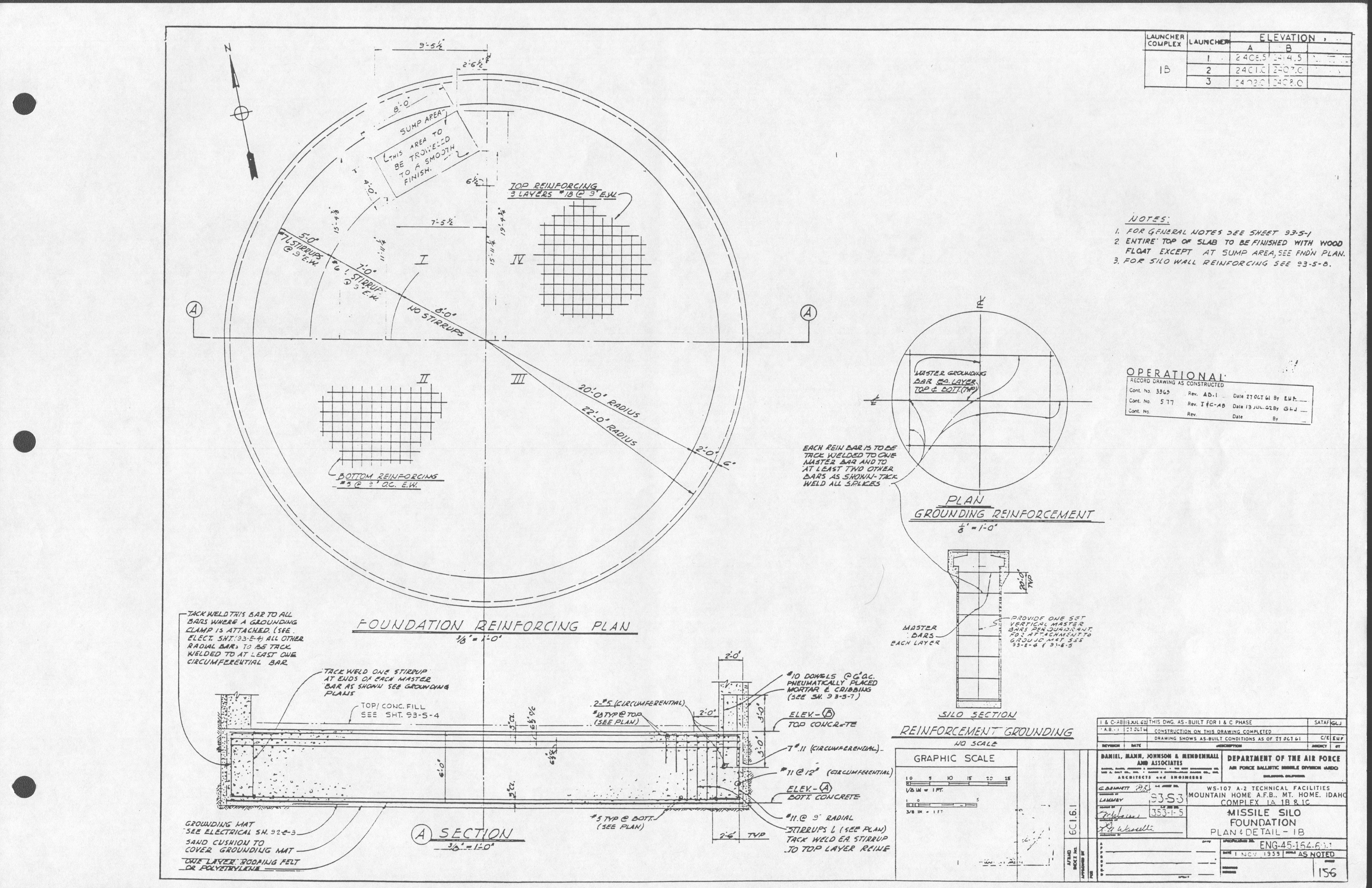

93-S-3 FOUNDATION PLAN & DETAIL 1B

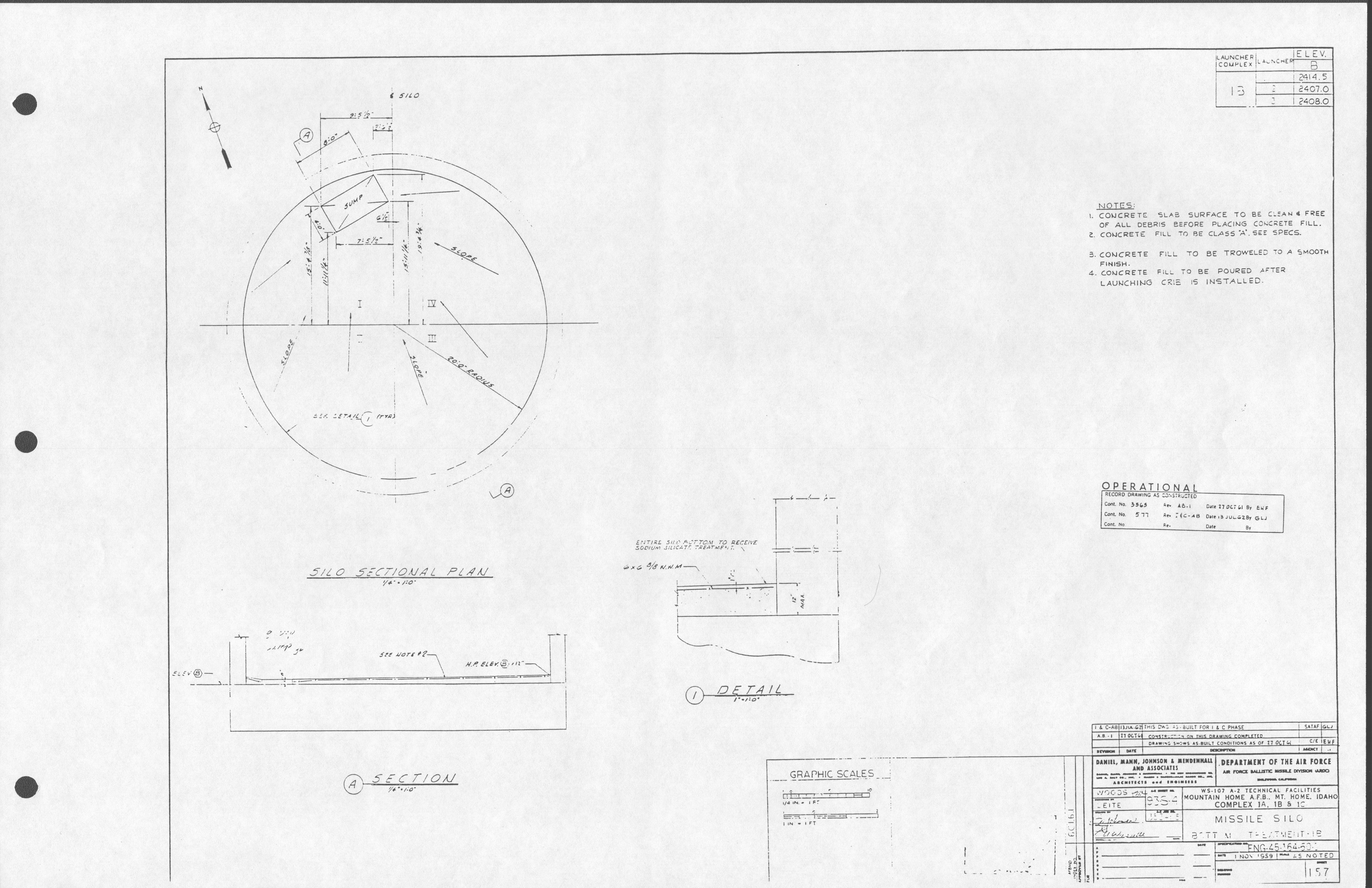

93-S-4 BOTTOM TREATMENT - 1B

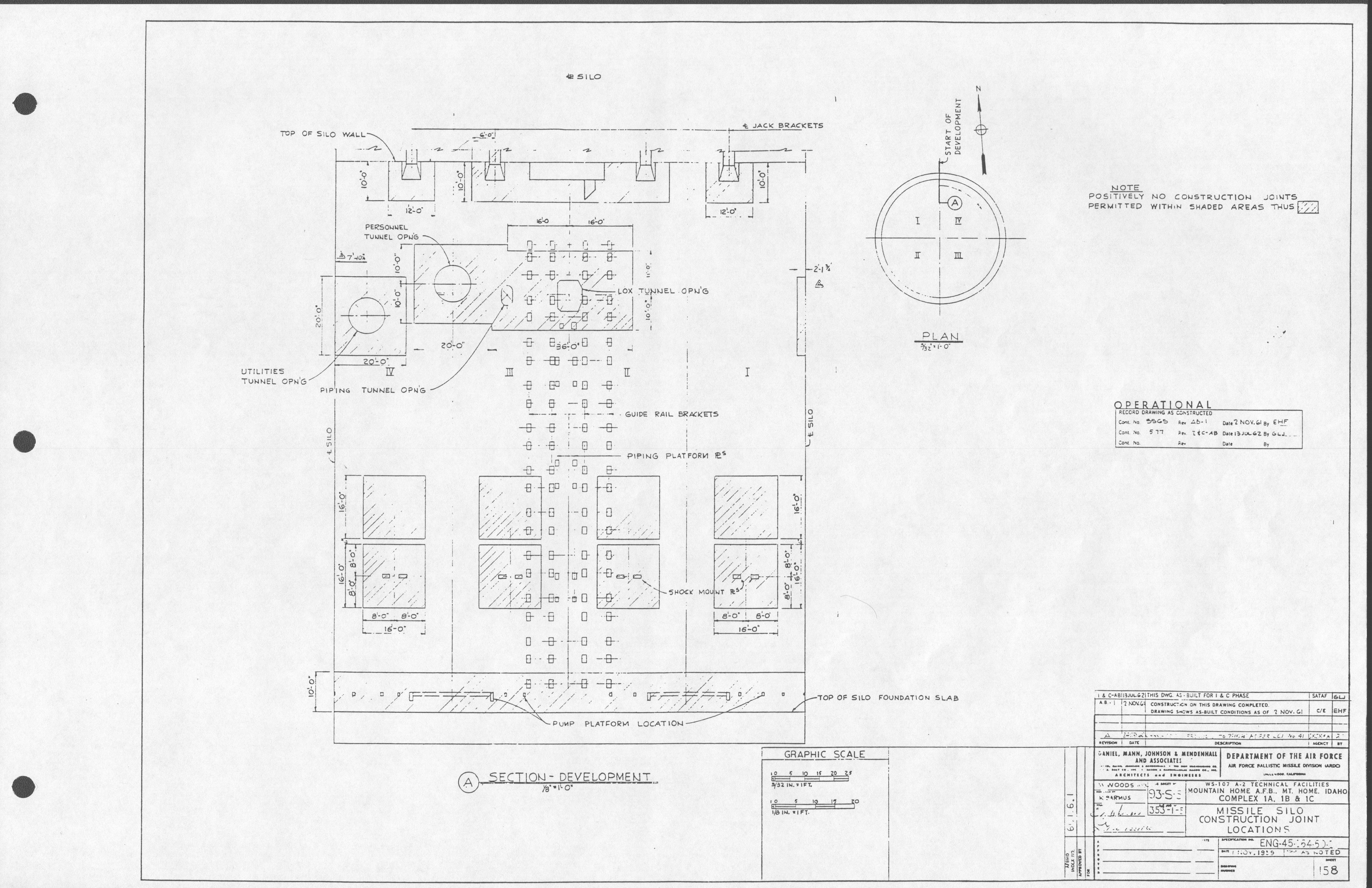

93-S-5 CONSTRUCTION JOINT LOCATIONS

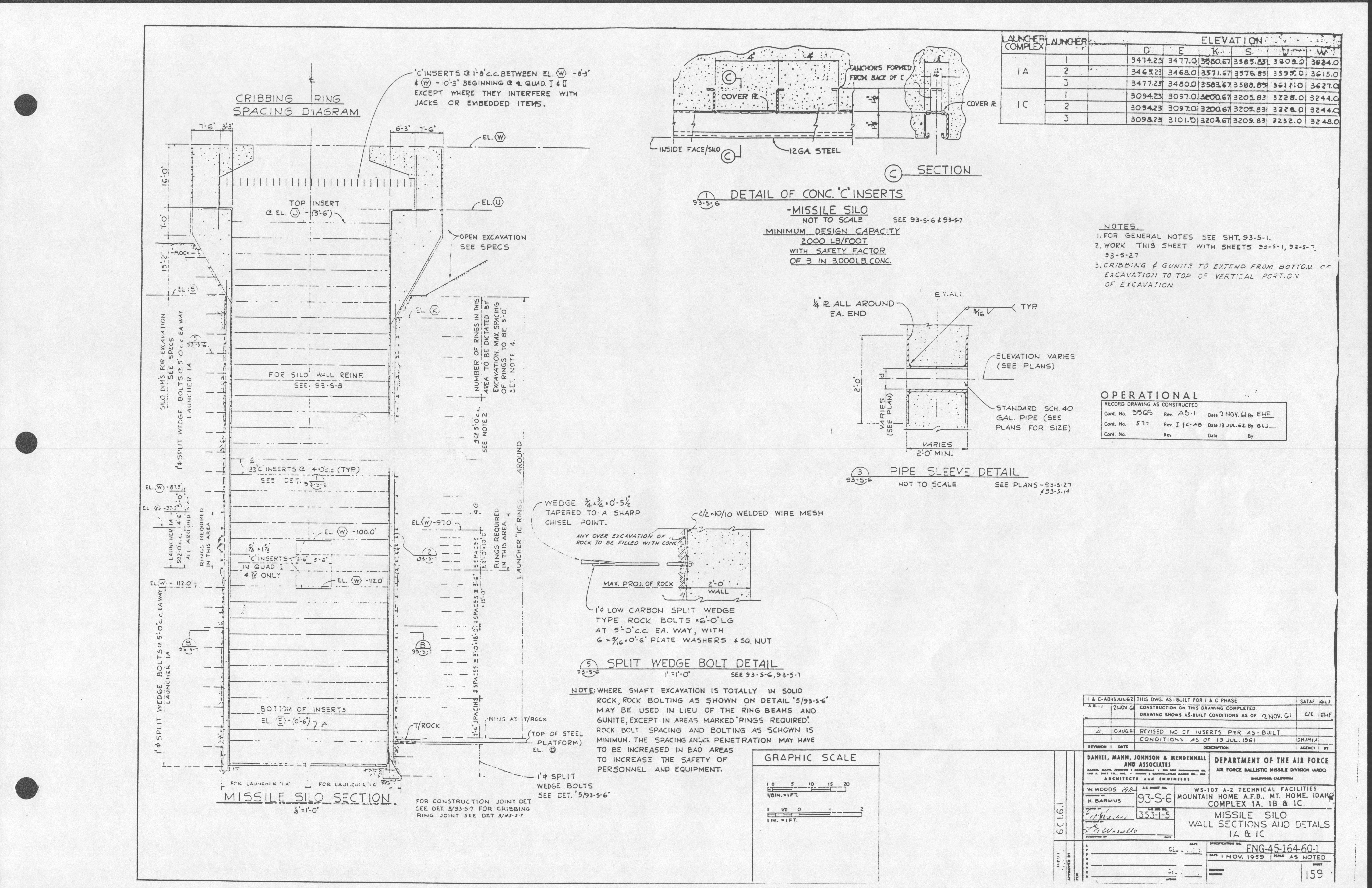

93-S-6 WALL SECTIONS & DETAILS 1A & 1C

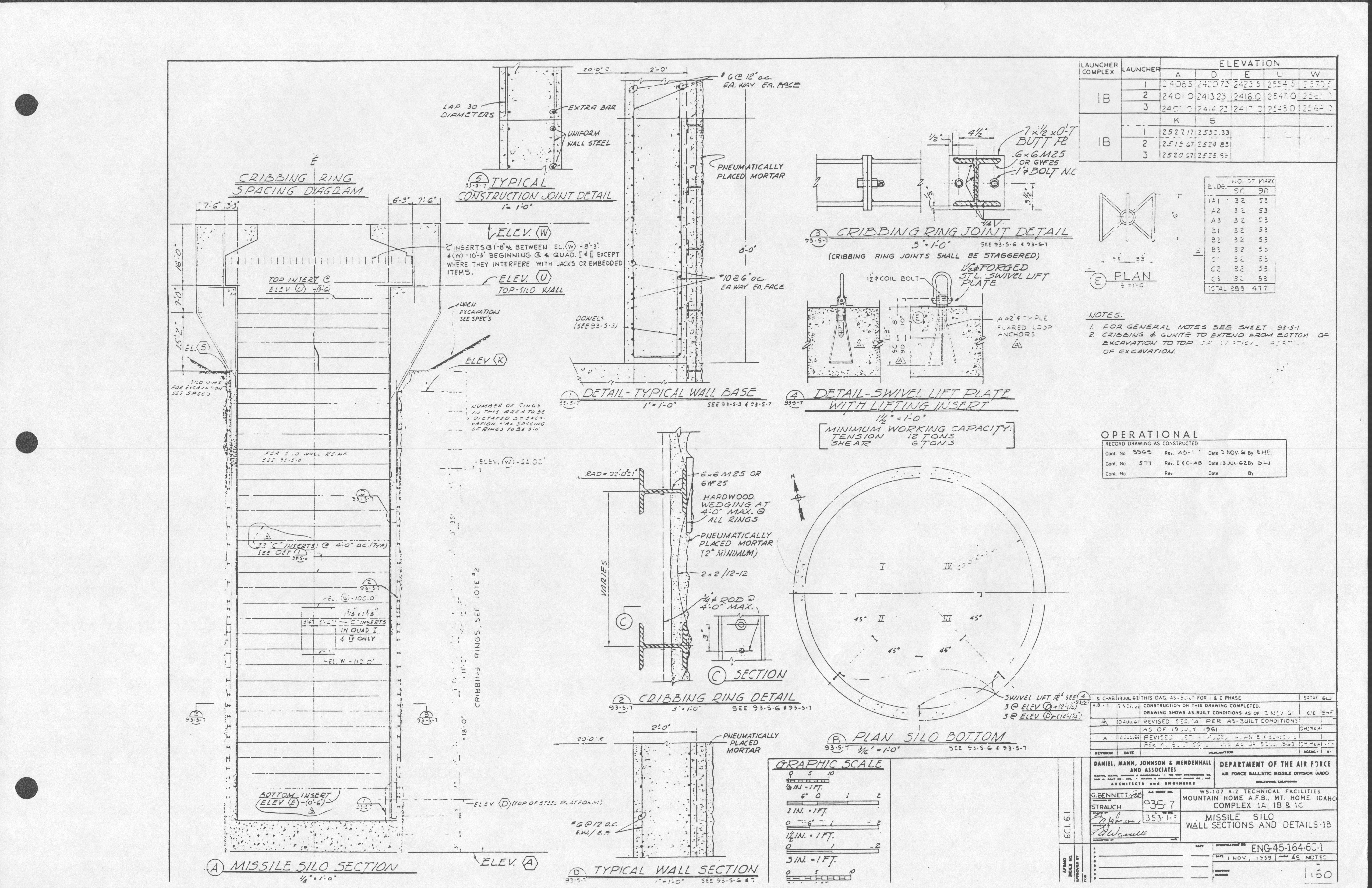

93-S-7 WALL SECTIONS & DETAILS 1B

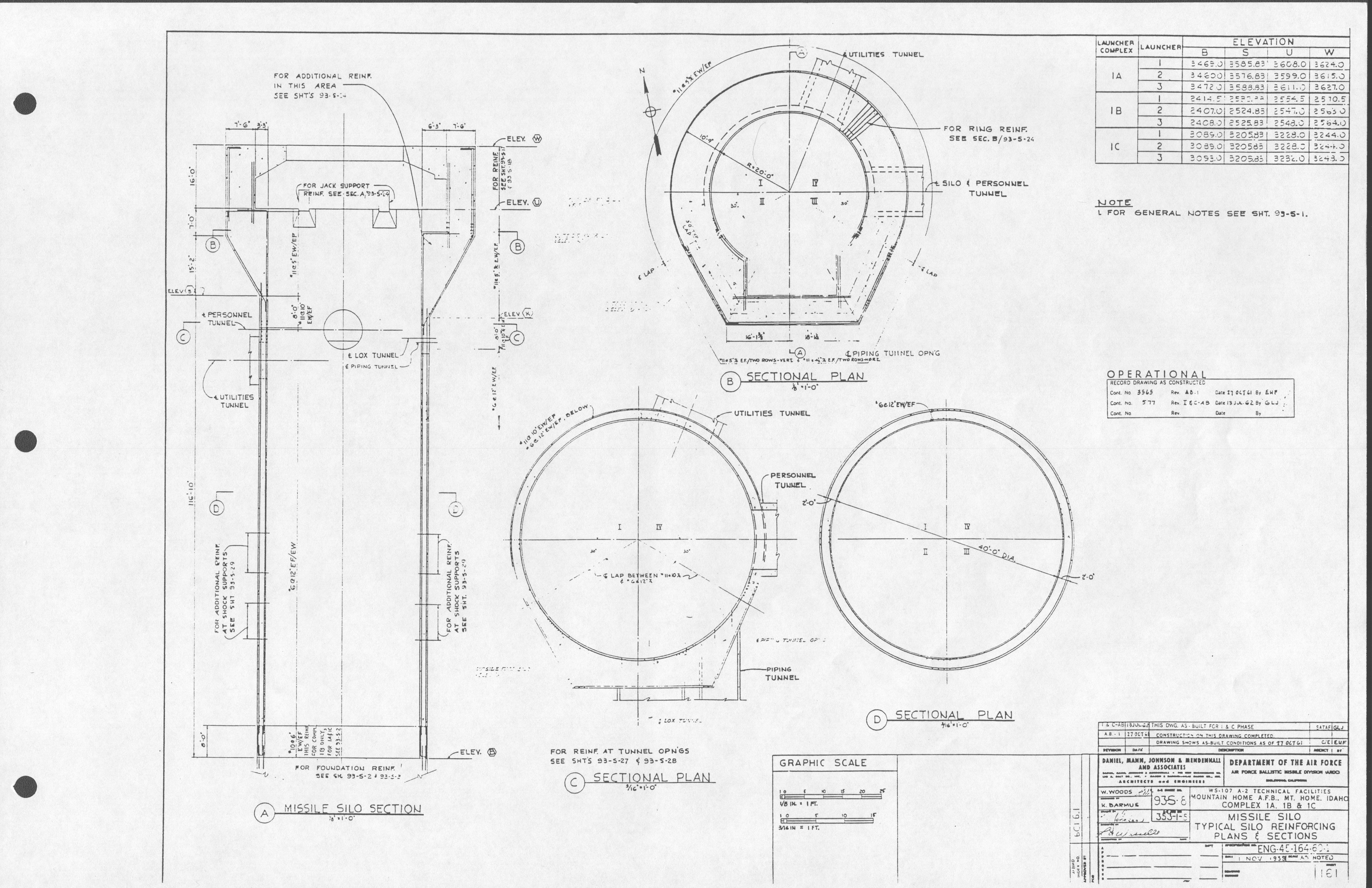

93-S-8 TYPICAL SILO REINFORCING PLANS & SECTIONS
93-S-9 MISSING *

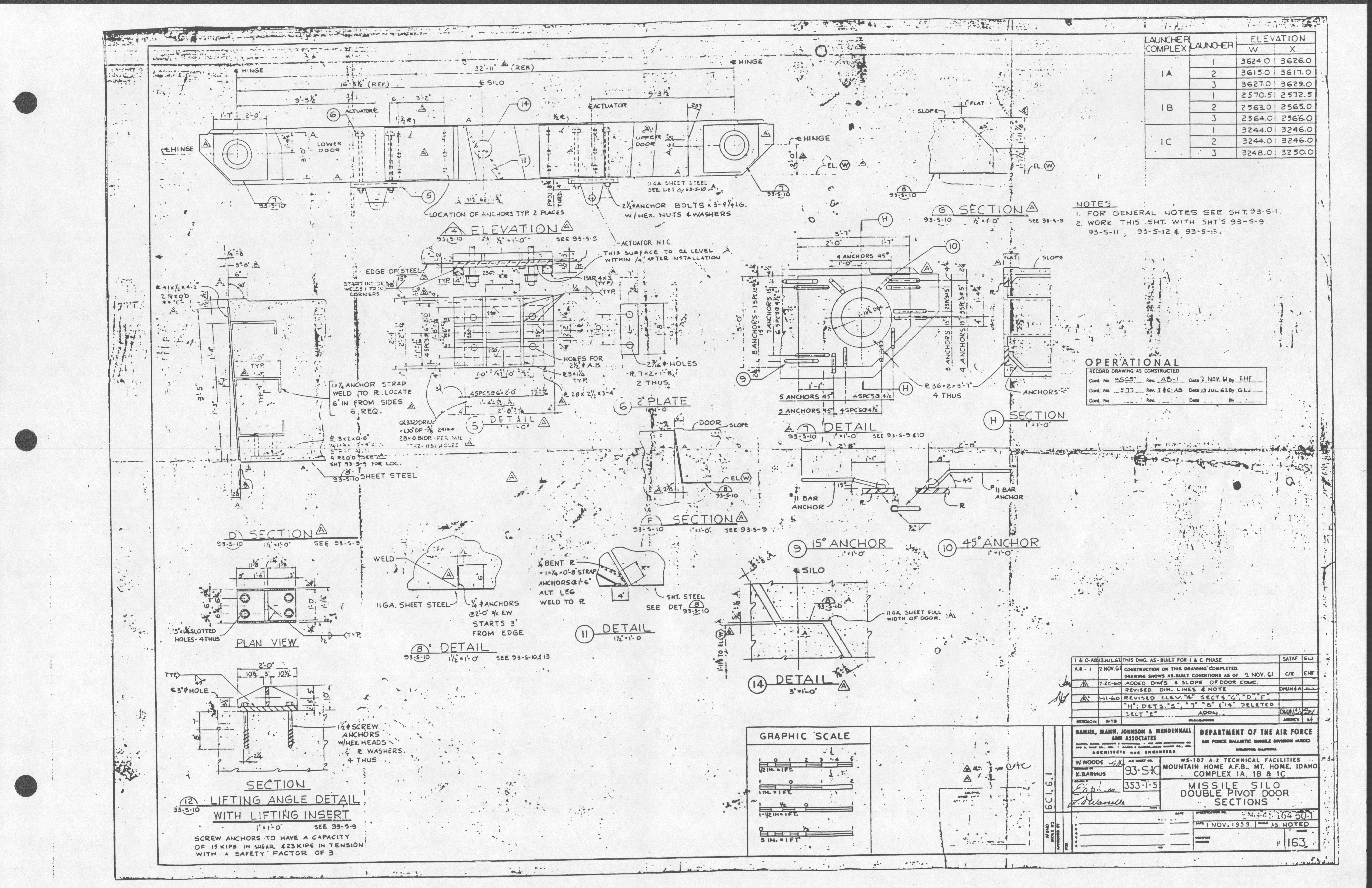

93-S-10 DOUBLE PIVOT DOOR SECTIONS

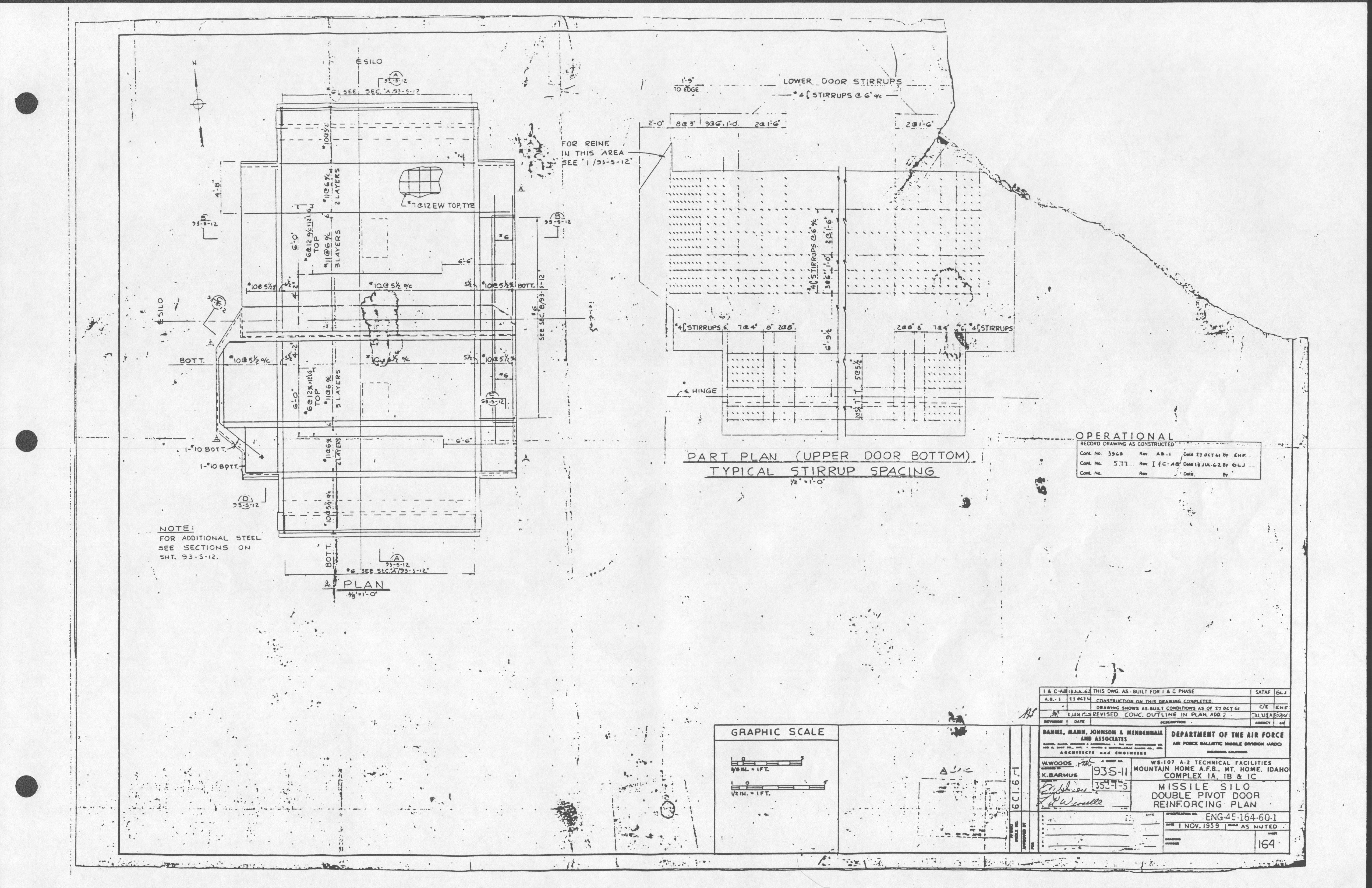

93-S-11 DOUBLE PIVOT DOOR REINFORCING PLAN
93-S-12 MISSING *
93-S-13 DOUBLE PIVOT DOOR MISC. DETAILS
93-S-14 MISSING *
93-S-15 MISSING *
93-S-16 MISSING *
93-S-17 MISSING *
93-S-18 MISSING *
93-S-19 MISSING *
93-S-20 MISSING *
93-S-21 MISSING *
93-S-22 MISSING *
93-S-23 MISSING *
93-S-24 MISSING *
93-S-25 MISSING *
93-S-26 MISSING *

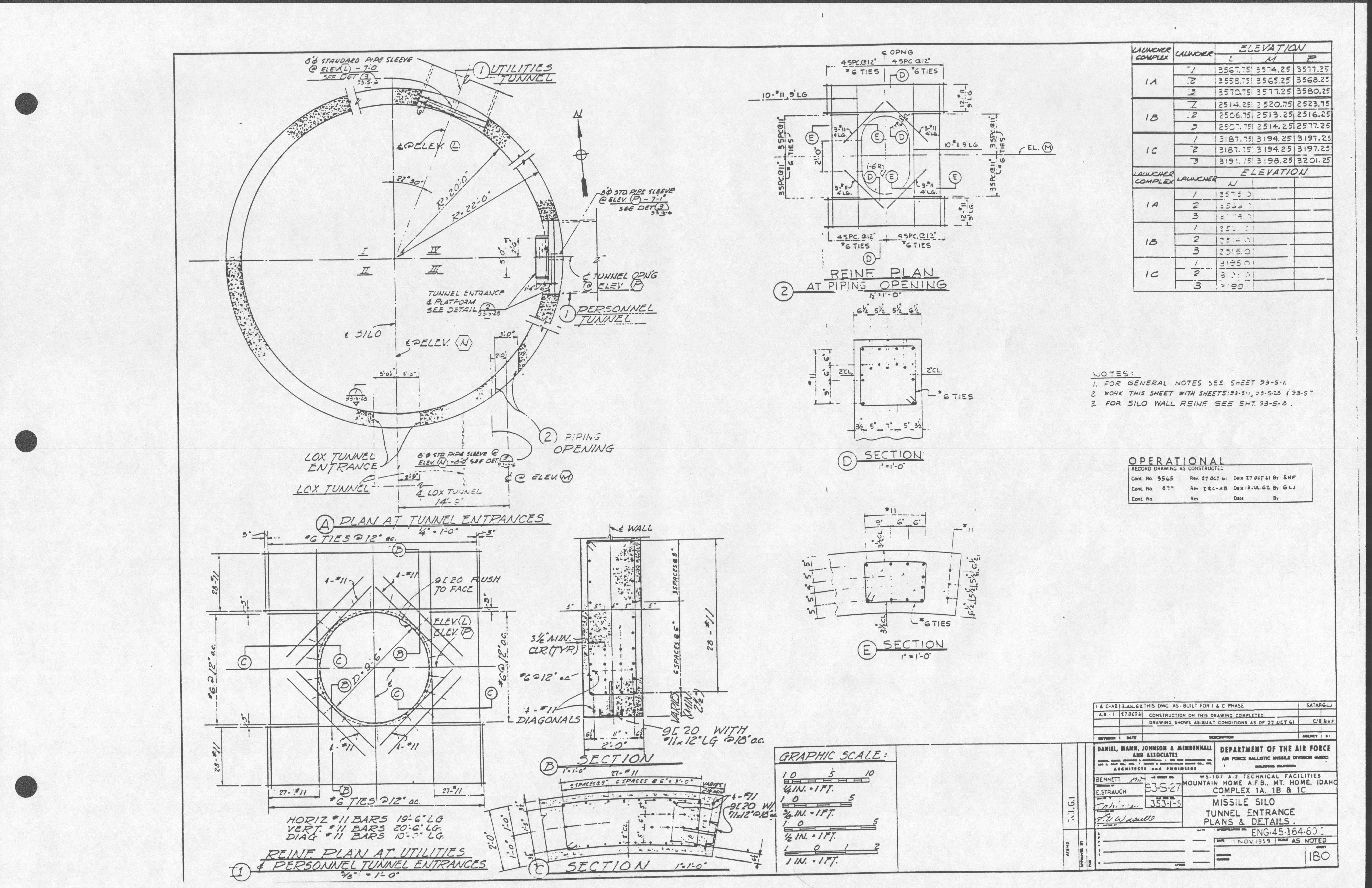

93-S-27 TUNNEL ENTRANCE PLANS & DETAILS
93-S-28 MISSING *

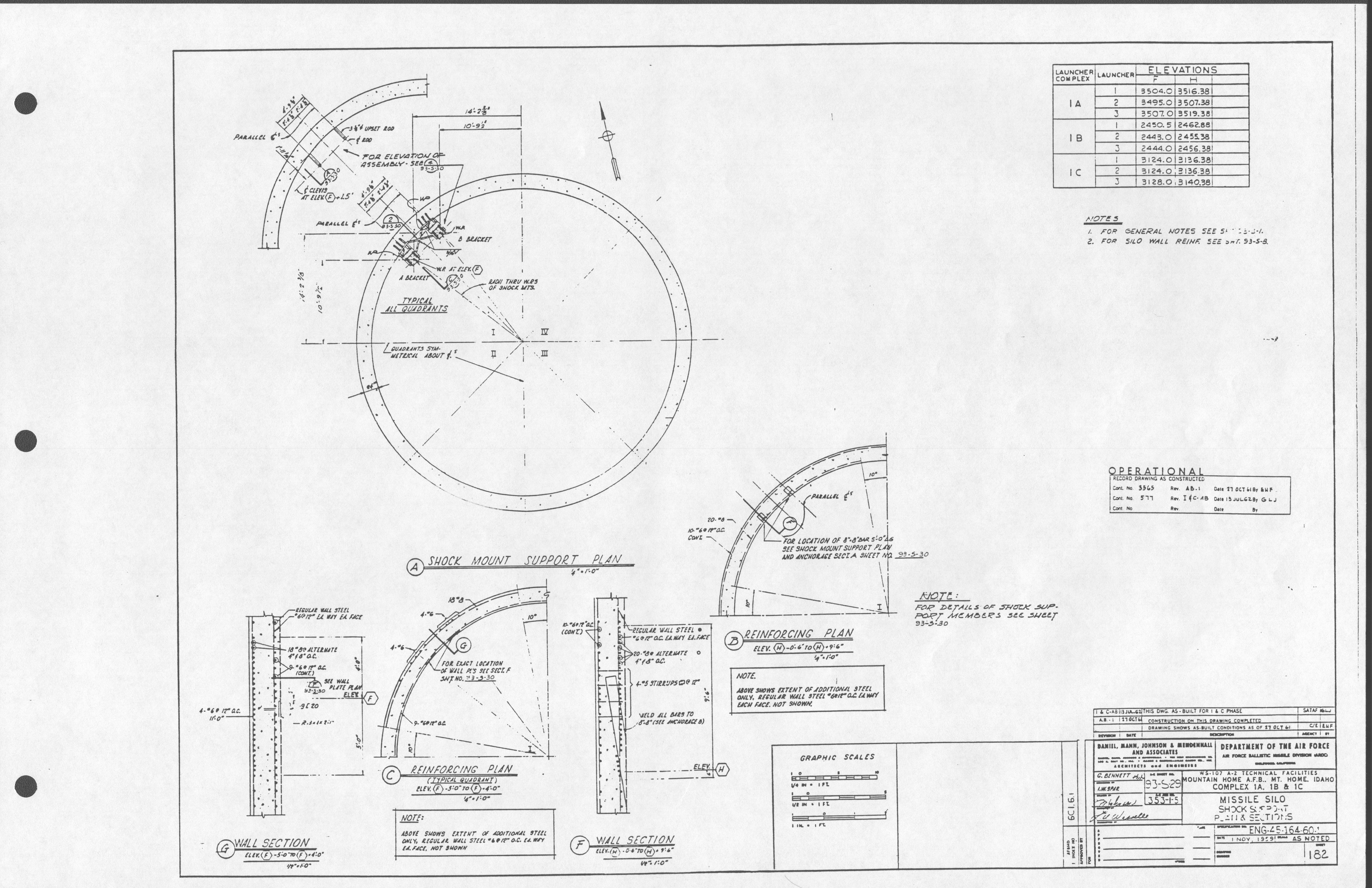

93-S-29 SHOCK SUPPORT PLAN & SECTIONS

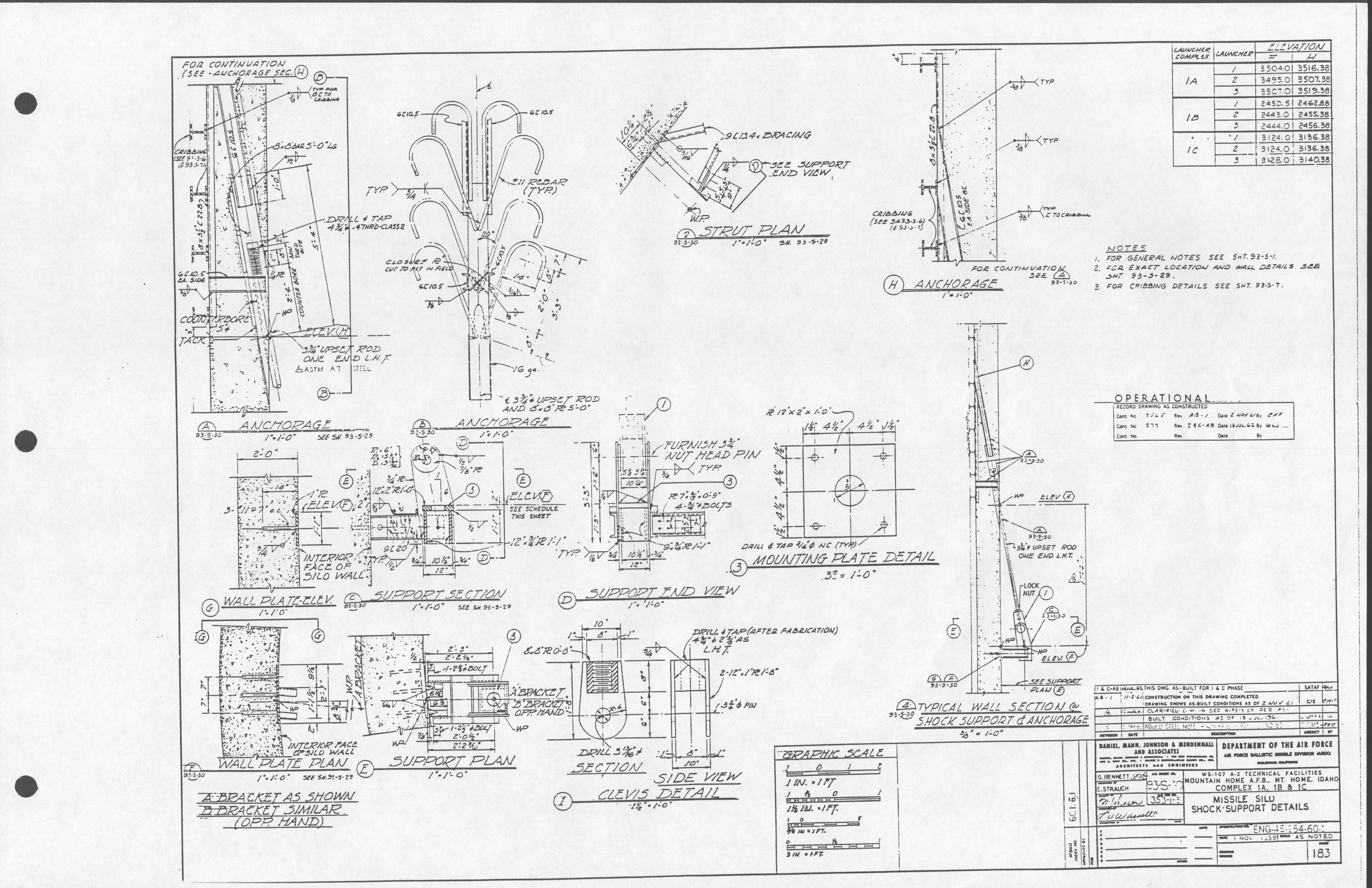

93-S-30 SHOCK SUPPORT DETAILS
* Drawing is thought to be missing, meaning that it is thought to be in the index, but unavailable. This drawing's existence is only suggested by another drawing with a higher number. E.g., If a drawing such as 92-S-3 exists, it is reasonable to infer that 92-S-1 and 92-S-2 also likely exist. It is possible however, that some drawings which are expected to exist may have been deleted from the drawing index, so there is no certainty that these drawings actually exist, and so these entries should only be considered as placeholders.
