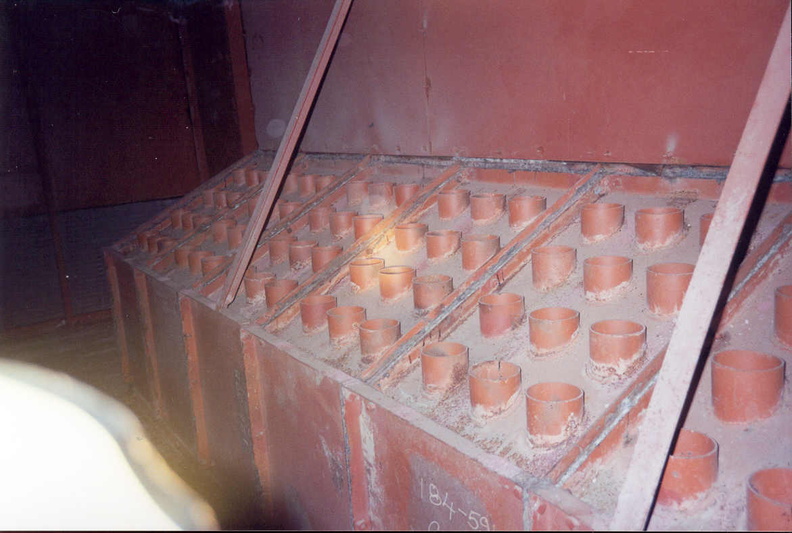

Launcher Air Filtration Facility at Lowry 724-C showing the cyclonic dust separators viewed from above where the air exited the separators through the tops of the many separation tubes. As air traveled through these separators, it would spiral around inside these tubes allowing dust to settle out through the bottom as air moved through. This area leads directly to the centrifugal fan which is separated by a partition wall. Taken: Circa 2002 Source: Myself
